Linear Technology LTC6803IG-1#PBF Battery Stack Monitor

The LTC6803IG-1#PBF is a high-performance, multicell battery stack monitor, designed and manufactured by Linear Technology, a brand synonymous with precision and reliability in the field of analog integrated circuits. This innovative component is specifically crafted to accurately monitor the voltage of up to 12 series-connected battery cells in high voltage battery packs. It is an integral part of battery management systems that require precise voltage monitoring to ensure safety, longevity, and efficiency in applications such as electric vehicles, energy storage systems, and backup power supplies.

With an operating temperature range from -40°C to 85°C, the LTC6803IG-1#PBF is equipped to withstand the rigors of harsh environments while maintaining accurate voltage measurements. It features a 1Mbps isoSPI interface for high-speed, RF-immune, long-distance communications, which is particularly useful for systems where the battery management system is physically remote from the battery pack.

Key features of the LTC6803IG-1#PBF include:

• Simultaneous measurement of all cells connected in series
• 12-bit ADC resolution for precise voltage readings
• High voltage capability, withstanding up to 1000V total stack voltage
• Low power consumption, suitable for battery-powered applications
• Robust communication via isoSPI interface
• Multiple LTC6803 devices can be connected in series, enabling monitoring of more than 12 cells
• Integrated temperature sensor for monitoring the IC temperature

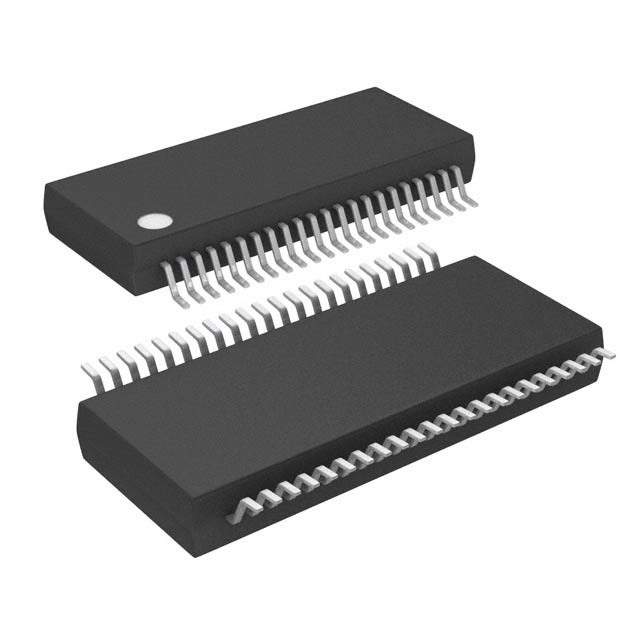

The LTC6803IG-1#PBF is housed in a compact 44-lead SSOP package, ensuring a minimal footprint on the circuit board, which is crucial for space-constrained applications. Its robust design includes built-in safety features such as overvoltage and undervoltage lockout, ensuring that the battery cells operate within their safe operating area.

Overall, the LTC6803IG-1#PBF by Linear Technology is a sophisticated solution for advanced battery management systems that demand high accuracy, reliability, and communication capabilities. Its precision engineering makes it an essential component for the next generation of high-performance battery systems.
