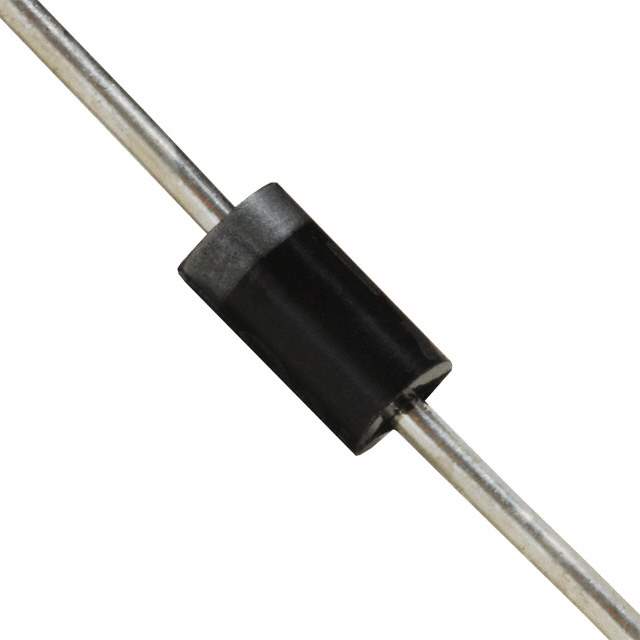

The ON Semiconductor SB10-05A2 is a high-performance Schottky Barrier Rectifier Diode designed for applications requiring low forward voltage drop and high current handling capabilities. This rectifier is suitable for high-frequency rectification and free-wheeling application in switching power supplies, inverters, and as polarity protection diodes.
Key Features:
- Low Forward Voltage Drop: The SB10-05A2 offers a low forward voltage drop, reducing power loss and improving efficiency, which is essential for power-sensitive circuits.
- High Current Capability: With its ability to handle high current, this diode is ideal for applications with high surge current requirements.
- High Reliability: ON Semiconductor's commitment to quality ensures that the SB10-05A2 is a reliable component for demanding applications.
- Low Power Loss: High efficiency is achieved thanks to the low power loss characteristics of the Schottky barrier rectifier.
- Environmentally Friendly: The device is lead-free, halogen-free, and RoHS compliant, making it suitable for use in green electronic products.
Applications:
- Switching power supplies
- Converters
- Free-wheeling diodes
- Reverse battery protection
- DC-DC converters
Specifications:
Parameter
Value
Maximum Repetitive Reverse Voltage (V<sub>RRM)
50 V
Average Rectified Forward Current (I<sub>o)
1 A
Non-Repetitive Peak Forward Surge Current (I<sub>FSM)
30 A
Forward Voltage Drop (V<sub>F)
0.55 V at 1 A
Operating Junction Temperature Range (T<sub>J)
-55 °C to +125 °C
The SB10-05A2 from ON Semiconductor is a robust and versatile Schottky diode that provides designers with a compact, efficient, and reliable solution for a wide range of power rectification needs. Its low forward voltage drop and high current capacity make it an excellent choice for improving system performance while minimizing energy loss.
