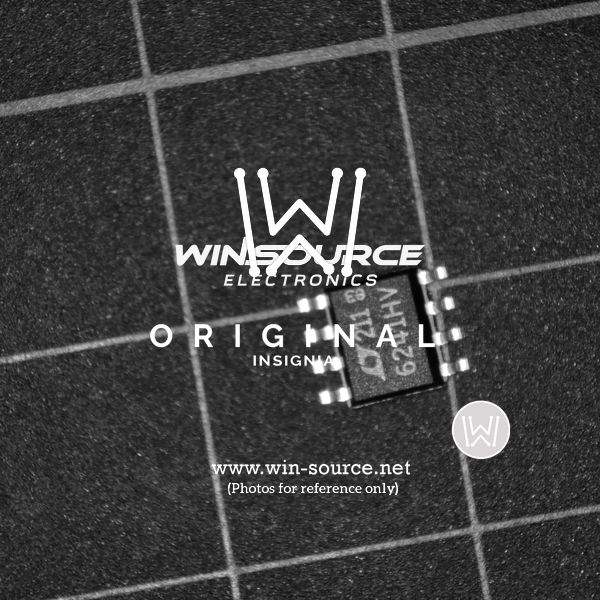

Product Overview: LTC6241HVCS8#PBF

The LTC6241HVCS8#PBF is a high-performance, dual operational amplifier (op-amp) produced by Linear Technology, now part of Analog Devices. This op-amp is designed with advanced CMOS technology, which allows it to offer low noise and high-speed operation, making it an ideal choice for a wide range of applications, including sensor interfaces, active filters, and fast amplifiers.

Key Features

• Wide Supply Voltage Range: The device can operate from a supply voltage range of 2.8V to 11V, or ±1.4V to ±5.5V for dual supplies, providing flexibility in various power environments.
• Low Noise Performance: With a low input noise voltage of 1.1nV/√Hz at 1kHz, the LTC6241HVCS8#PBF ensures precision in signal processing tasks.
• High-Speed Operation: The op-amp has a gain bandwidth product of 18MHz and a slew rate of 18V/μs, enabling it to handle fast signals and quick changes in signal levels efficiently.
• Rail-to-Rail Output Swing: The rail-to-rail output stage allows the signal to swing closer to the supply rails, maximizing the dynamic range in low voltage applications.
• Low Offset Voltage: A low input offset voltage of 0.25mV ensures accuracy and minimizes error in high precision applications.
• Extended Temperature Range: The device is specified for operation from -40°C to 125°C, making it suitable for industrial and automotive applications where extreme temperatures are common.
• Robust Packaging: The LTC6241HVCS8#PBF comes in an 8-lead SOIC package, which is known for its reliability and ease of integration into various circuit designs.

Applications

The LTC6241HVCS8#PBF is versatile and can be used in a multitude of applications. It is particularly useful in precision instrumentation, ADC buffer amplifiers, DAC current-to-voltage conversion, and active filters. Its high-speed characteristics also make it suitable for fast amplifiers in data acquisition systems, video and imaging equipment, and communication systems.

In summary, the LTC6241HVCS8#PBF by Linear Technology is a high-quality, dual operational amplifier that offers a blend of speed, precision, and versatility, making it an excellent choice for designers looking to enhance the performance of their electronic systems.
