Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Linear Technology
Packaging Reel - TR
Status Active
Type Simple Reset/Power-On Reset
Number of Voltages Monitored 1
Output Push-Pull, Totem Pole
Reset Active Low
Reset Timeout Adjustable/Selectable
Voltage - Threshold Adjustable/Selectable
Temperature Range - Operating -40°C to 85°C (TA)
Mounting SMD (SMT)
Case / Package TSOT-23-8
Win Source Part Number 135131-LTC2934ITS8-2#TRPBF
Ultra Librarian 3D Model Ultra Librarian LTC2934ITS8-2#TRPBF CAD Model

Description

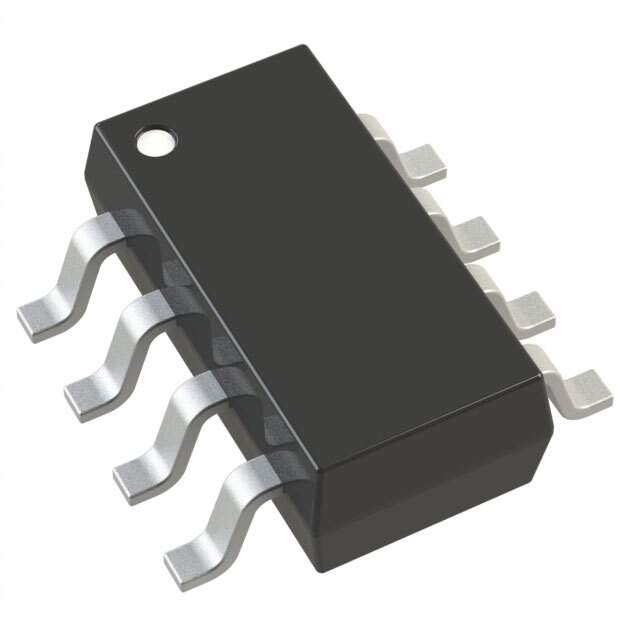

LTC2934ITS8-2#TRPBF - Voltage Monitor from Linear Technology

The LTC2934ITS8-2#TRPBF is a highly precise, low current voltage monitor designed by Linear Technology, a name synonymous with reliability and performance in the field of power management integrated circuits. This advanced component is specifically engineered to safeguard systems by monitoring up to four supply voltages without the need for external resistors.

This voltage monitor is housed in a compact TSOT-23 package, making it an ideal choice for space-constrained applications. It operates over a wide voltage range, ensuring versatility across various platforms and systems. The LTC2934ITS8-2#TRPBF is also characterized by its low quiescent current, which significantly enhances the energy efficiency of the applications it is used in.

Key Features:

  • Multiple Voltage Thresholds: The device can monitor up to four voltage thresholds, which are internally set with a precision of ±1.5%, providing accurate monitoring to prevent system failure due to voltage fluctuations.
  • Low Power Consumption: With its ultra-low quiescent current of just 4.5µA, the LTC2934ITS8-2#TRPBF is perfect for battery-powered and portable applications where power conservation is critical.
  • Wide Operating Voltage Range: The device's wide operating voltage range of 2.7V to 29V allows it to be used in a diverse array of applications, from low-voltage portable devices to higher-voltage industrial systems.
  • Adjustable Reset Timeout: The LTC2934 features an adjustable reset timeout period, providing designers with the flexibility to tailor the monitoring system to specific application requirements.
  • Guaranteed Reset Output: The reset output is guaranteed to be in the correct state for VCC down to 1V, ensuring reliable operation even during low voltage conditions.
  • Temperature Range: The device operates over a temperature range of -40°C to 85°C, accommodating a wide variety of environmental conditions.

The LTC2934ITS8-2#TRPBF offers a robust power monitoring solution that integrates seamlessly into a variety of applications, including microprocessor systems, computers, battery-powered equipment, and intelligent instruments. Its precision and low power consumption, combined with the reliability of Linear Technology, make it an essential component for any system requiring dependable voltage monitoring.
