Linear Technology LTC2630ISC6-LZ12 Digital-to-Analog Converter

The LTC2630ISC6-LZ12 is a high-precision, 12-bit Digital-to-Analog Converter (DAC) designed by Linear Technology, now part of Analog Devices, to deliver exceptional performance in a compact package. This device is part of a family of DACs that offer different resolution options and integrated features to suit a wide range of applications, including industrial control systems, automated test equipment, and digital calibration of analog signals.

Key Features:

• Resolution: The LTC2630ISC6-LZ12 offers a 12-bit resolution, providing fine granularity for output voltage settings, which is essential for applications requiring precise analog output.
• Output Range: This DAC comes with an internally set reference voltage, which results in a fixed output range that simplifies the design for applications that can operate within the given parameters.
• Power Efficiency: The device is designed for low power operation, making it suitable for battery-powered devices and power-sensitive applications.

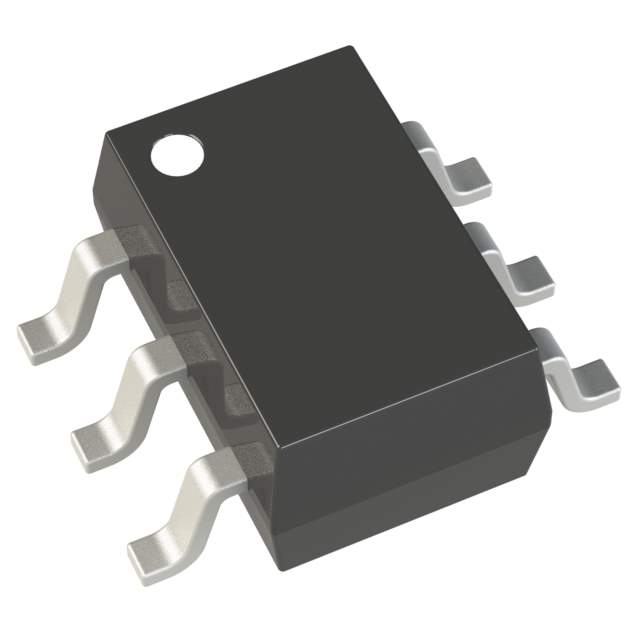

• Package: It is housed in a compact SC70-6 package, which is ideal for space-constrained applications while still providing excellent thermal performance.
• Interface: The LTC2630ISC6-LZ12 features a simple SPI-compatible serial interface that allows for easy integration into microcontroller-based systems.
• Integrated Features: The DAC includes a power-on reset circuit that ensures the DAC output powers up to zero volts and remains there until a valid write takes place. This feature is critical for systems that require a known startup condition to prevent unintended actions.

Applications:

• Automated Test Equipment
• Industrial Control Systems
• Process Control
• Data Acquisition Systems
• Portable Battery-Powered Instruments
• Digital Offset and Gain Adjustment

The LTC2630ISC6-LZ12 stands out for its combination of high resolution, compact form factor, and ease of use, making it an excellent choice for engineers and designers looking to incorporate reliable DAC functionality into their systems with minimal overhead and maximum precision.
