Product Overview: LTC2630CSC6-LZ10#TRPBF

The LTC2630CSC6-LZ10#TRPBF is a precision Digital-to-Analog Converter (DAC) component from Linear Technology, designed to provide a compact and efficient solution for digital-to-analog conversion needs in a wide range of applications. This product features a 10-bit resolution, offering fine granularity and precise control over the analog output. The LTC2630 is part of a family of DACs that vary in resolution and output options, making it a versatile choice for designers.

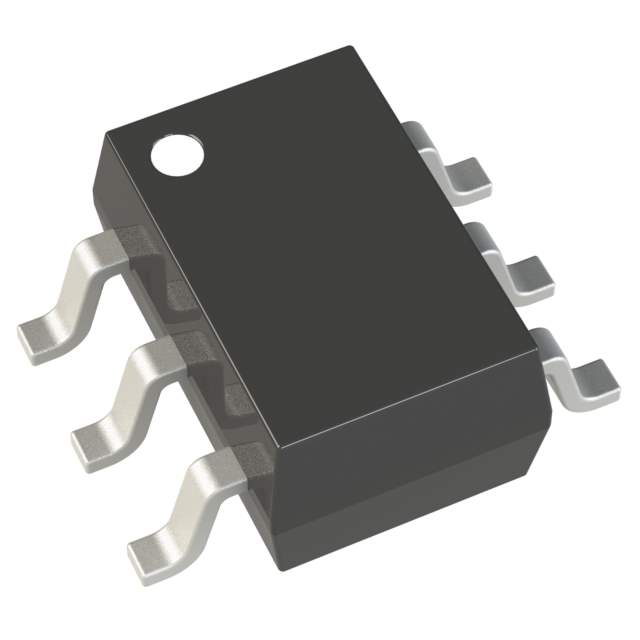

This particular model of the LTC2630 DAC comes in a small 6-lead SC70 package, which is ideal for space-constrained applications. The tiny footprint of the component does not compromise its performance, ensuring that it can be integrated into the most size-sensitive designs without sacrificing quality or functionality.

One of the key features of the LTC2630CSC6-LZ10#TRPBF is its integrated reference with 10ppm/°C max temperature coefficient. This built-in reference simplifies the design process by reducing the number of external components required, thus saving space and cost. The DAC operates from a single 2.7V to 5.5V supply, providing flexibility in terms of power supply design and compatibility with various system voltages.

The device offers a Rail-to-Rail output buffer, which allows the output to swing from 0V to the supply voltage, giving the maximum dynamic range. This is particularly important in systems where the full scale of the analog input range needs to be utilized. The LTC2630 also features a power-on reset circuit, which ensures that the DAC output powers up to zero-scale or mid-scale and remains there until a valid write takes place. This feature is crucial in systems where a predictable startup condition is necessary.

Communication with the LTC2630CSC6-LZ10#TRPBF is achieved through a 3-wire SPI-compatible serial interface, which is used to send data and configuration commands to the DAC. This interface is designed to be simple and easy to use while supporting high-speed data transfers, making the DAC suitable for both slow and fast updating applications.

In summary, the LTC2630CSC6-LZ10#TRPBF from Linear Technology is a high-performance, compact, and easy-to-use DAC solution that is well-suited for a variety of applications requiring precise digital-to-analog conversion.
