Product Overview: LTC1562ACG#TRPBF

The LTC1562ACG#TRPBF is a high-performance, active RC filter building block designed by Linear Technology, now part of Analog Devices. This integrated circuit (IC) is tailored to provide a precise and stable filter solution for a wide range of applications including signal processing, telecommunications, and instrumentation.

Key Features

• Highly Selective Filtering: The LTC1562ACG#TRPBF offers a very low noise continuous time filter with a sharp roll-off and a tunable frequency range, making it ideal for applications requiring high selectivity.
• Flexible Filter Configurations: This IC can be configured in various filter responses such as low-pass, high-pass, band-pass, or notch filters. It supports a wide frequency range that can be adjusted by external resistors or clock-controlled.
• Low Distortion: The device features exceptionally low harmonic distortion, which is crucial for maintaining signal integrity in audio processing and high-fidelity applications.
• Single or Dual Supply Operation: It is capable of operating from a single 5V supply or dual ±5V supplies, providing design versatility for different system requirements.

Applications

The LTC1562ACG#TRPBF is suitable for a variety of applications, including:

• Anti-aliasing filters for data acquisition systems
• Audio and video signal processing
• Telecommunications equipment
• Instrumentation and control systems
• Medical electronics

Package and Quality

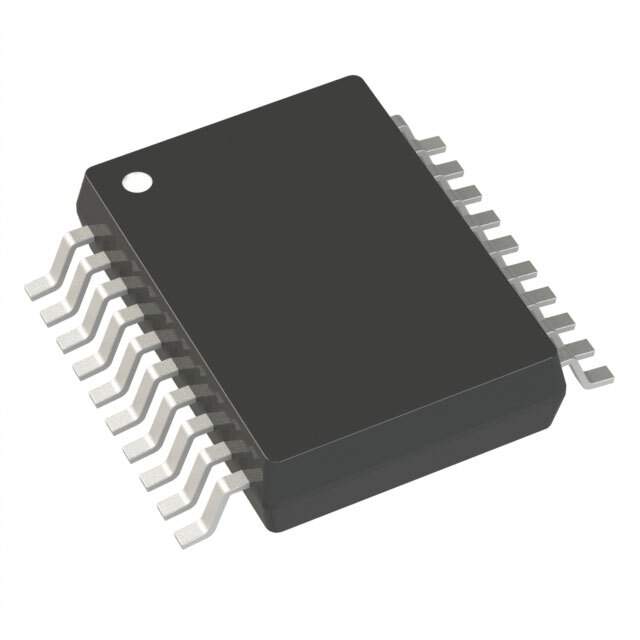

This product comes in a compact 20-lead SSOP package, which is ideal for space-constrained applications. The LTC1562ACG#TRPBF is designed for high reliability and performance, meeting the stringent quality standards expected from Linear Technology products.

Conclusion

With its versatile filter configurations, low distortion, and wide frequency range, the LTC1562ACG#TRPBF from Linear Technology is an excellent choice for designers looking to implement high-quality filtering solutions in their systems. Its ease of use and flexibility make it a valuable component for a multitude of electronic designs.
