Product Overview: LT8500EUHH#PBF

The LT8500EUHH#PBF is a cutting-edge pulse width modulation (PWM) generator IC designed by Linear Technology, now part of Analog Devices, which is renowned for its high-performance analog integrated circuits. This particular product stands out for its ability to generate 48 independent channels of PWM signals, making it an ideal choice for advanced LED lighting systems, display backlighting, and other applications requiring a large number of PWM outputs.

Key Features

• 48 Independent PWM Channels: Each channel can be controlled individually, offering flexibility for complex lighting patterns and intensity control.
• 12-Bit (4096 Steps) Grayscale PWM Resolution: High-resolution control allows for smooth dimming and color mixing, which is critical for applications requiring precise light control.
• Serial Interface: The device includes a serial interface for communication, making it simple to integrate into a variety of systems.
• Phase Shifted PWM: This feature reduces the potential for audible noise and electromagnetic interference (EMI), improving the performance and reliability of the system.
• Integrated Dot Correction: Dot correction helps compensate for color and brightness variations between LEDs, ensuring uniform output across the display or lighting installation.

Applications

The LT8500EUHH#PBF is versatile and can be used in a wide range of applications. It is particularly well-suited for:

• LED display backlighting systems
• RGB and RGBA color mixing in LED lighting
• Video display panels
• General-purpose PWM generation

Reliability and Performance

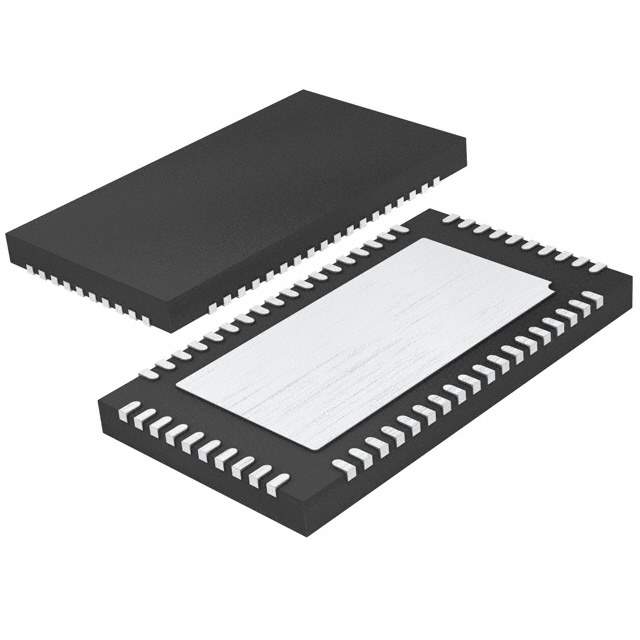

Encased in a QFN-38 package, the LT8500EUHH#PBF is designed to perform reliably in a variety of environments. Its operating temperature range and robust design ensure that it can handle the demands of industrial and commercial applications. With its precise control and high channel count, this product from Linear Technology is an excellent choice for designers looking to create sophisticated lighting solutions or any other system requiring multiple PWM signals.
