Linear Technology's LT6703IDC-3#TRPBF Micro-Power Comparator

The LT6703IDC-3#TRPBF is a high-performance, low-power voltage comparator with an integrated reference from Linear Technology. This compact and efficient device is designed for a variety of applications that require precision voltage detection and comparison. It's a great choice for portable and battery-powered systems due to its micro-power consumption.

Key Features

• Integrated Reference: The LT6703IDC-3#TRPBF comes with a precise 400mV reference voltage, which simplifies designs by eliminating the need for an external reference.
• Low Power Consumption: With a quiescent current of just 6.5μA, this comparator is ideal for power-sensitive applications.
• Operating Voltage Range: It operates over a wide supply voltage range of 1.4V to 18V, providing versatility in different circuit configurations.
• Output Stage: The open-drain output stage allows for easy interfacing with other logic levels and provides the capability to wire-OR multiple comparators.
• Temperature Range: The device is specified for operation from -40°C to 125°C, ensuring reliable performance across a wide range of environmental conditions.

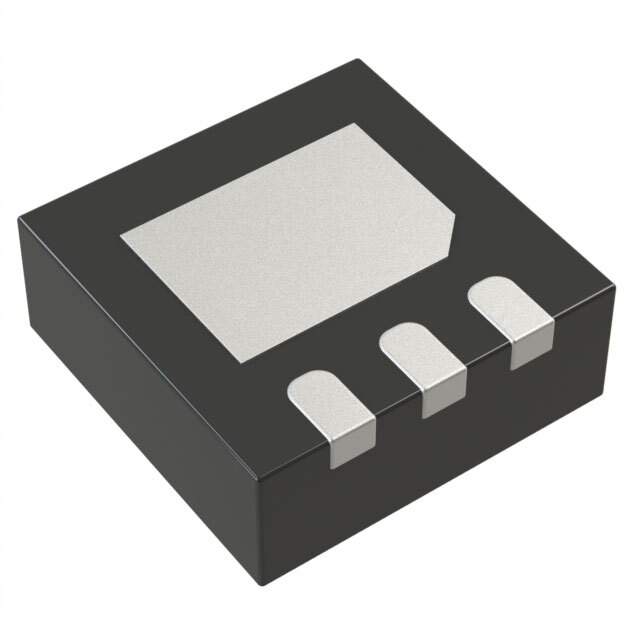

• Packaging: The LT6703IDC-3#TRPBF is offered in a small 6-pin DFN package, which is suitable for space-constrained applications.

Applications

• Battery Monitoring
• Threshold Detection and Level Shifting
• Window Comparators
• Portable and Wireless Equipment
• Power Supply Control

The LT6703IDC-3#TRPBF is designed to provide a high degree of accuracy and reliability. Its integrated reference and low quiescent current make it an excellent choice for systems where power efficiency is critical. Whether you're designing portable devices, monitoring battery levels, or creating sophisticated control systems, this micro-power comparator from Linear Technology is engineered to meet your needs with precision and durability.

With its robust feature set and compact footprint, the LT6703IDC-3#TRPBF is a versatile component that enhances the performance and efficiency of your electronic designs.
