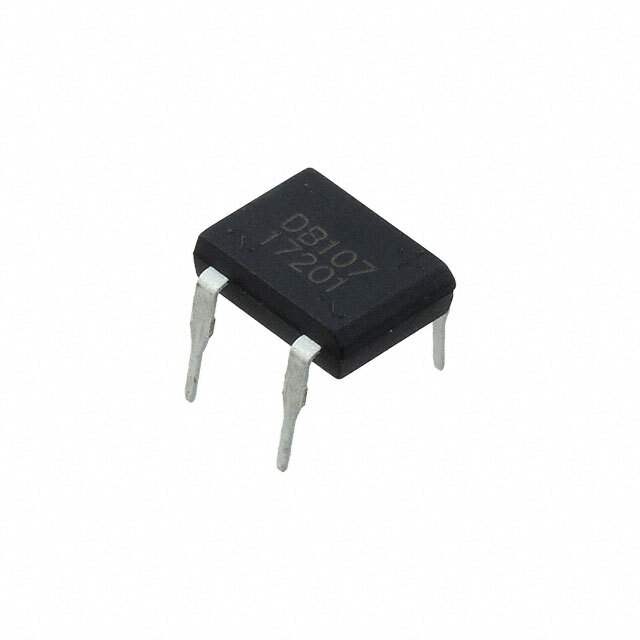

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Bridge Rectifiers
Mfr SMC Diode Solutions
Package Tube
Product Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 600 V
Current - Average Rectified (Io) 1.5 A
Voltage - Forward (Vf) (Max) @ If 1.1 V @ 1.5 A
Current - Reverse Leakage @ Vr 5 µA @ 600 V
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Through Hole
Package / Case 4-EDIP (0.321", 8.15mm)
Supplier Device Package DB-M
Base Product Number DB155
Standard Package 50 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 584105-DB155
Ultra Librarian 3D Model Ultra Librarian DB155 CAD Model

Description

The 584105-DB155 is a single phase bridge rectifier from SMC Diode Solutions.

  • It is a through-hole component with a current rating of 1.5 A and a voltage rating of 600 V.
  • The rectifier has a forward voltage of 1.1 V @ a current of 1.5 A.
  • It has a reverse leakage current of 5 µA @ a reverse voltage of 600 V.
  • The rectifier is packaged in a 4-EDIP package and is supplied in a tube package.
  • It operates over a temperature range of -55°C to 150°C.
  • The 584105-DB155 is suitable for use in various applications such as rectification, power supplies, and motor drives.
