Linear Technology's LT5522EUF#TR High Linearity Mixer IC

The LT5522EUF#TR is a state-of-the-art high linearity mixer integrated circuit, designed and manufactured by Linear Technology. This component is engineered to provide superior performance in radio frequency (RF) and intermediate frequency (IF) applications, making it an ideal choice for advanced communication systems. Its high linearity feature ensures minimal distortion in signal processing, which is crucial for maintaining signal integrity in complex modulation schemes.

The LT5522EUF#TR operates over a broad frequency range, with an RF frequency range of 400MHz to 3GHz and an LO frequency range of 400MHz to 3.5GHz. This wide frequency coverage makes it versatile for various applications, including cellular base stations, wireless repeaters, and broadband wireless access systems.

One of the standout features of this mixer is its high input IP3 (third-order intercept point) of 24.1dBm at 900MHz, which is a testament to its ability to handle high power signals without significant non-linear distortion. This characteristic is particularly important in environments where multiple signals are present, as it helps to prevent intermodulation products that can degrade overall system performance.

The LT5522EUF#TR also boasts a low noise figure of 11.3dB, which contributes to a cleaner signal and improved signal-to-noise ratio (SNR). This low noise figure is beneficial in applications where maintaining a high-quality signal is paramount, such as in high-definition broadcasting or precision instrumentation.

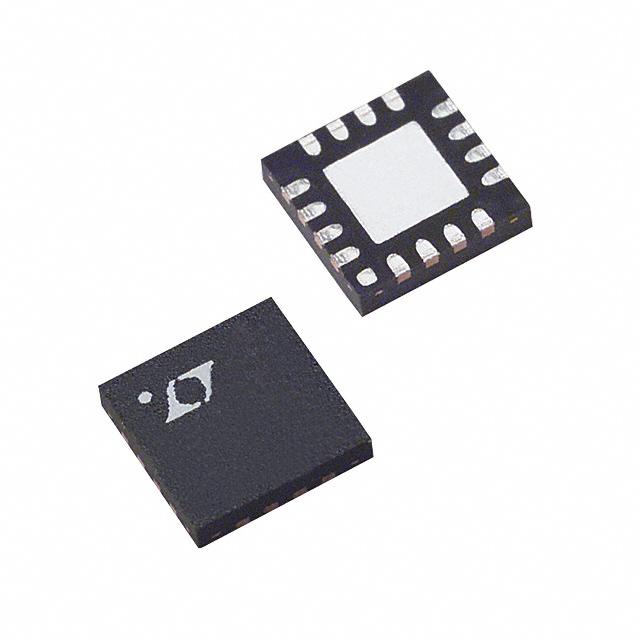

Designed with practicality in mind, the mixer comes in a compact 16-lead QFN package with an exposed pad for enhanced thermal performance. This small footprint allows for more efficient use of board space in densely packed electronic designs. Additionally, the part is available in tape and reel packaging, denoted by the '#TR' suffix, which facilitates automated assembly processes, making it a convenient choice for high-volume production.

In summary, the LT5522EUF#TR from Linear Technology is a robust and versatile high linearity mixer IC that offers exceptional performance for a wide range of RF and IF applications. Its superior linearity, broad frequency range, and low noise figure make it an indispensable component for designers seeking to optimize signal quality and integrity in their systems.
