Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Linear Technology
Packaging Reel package
Voltage - Clamping 27V Adj
Technology External Switch
Number of Circuits 1
Applications Automotive
Mounting SMD

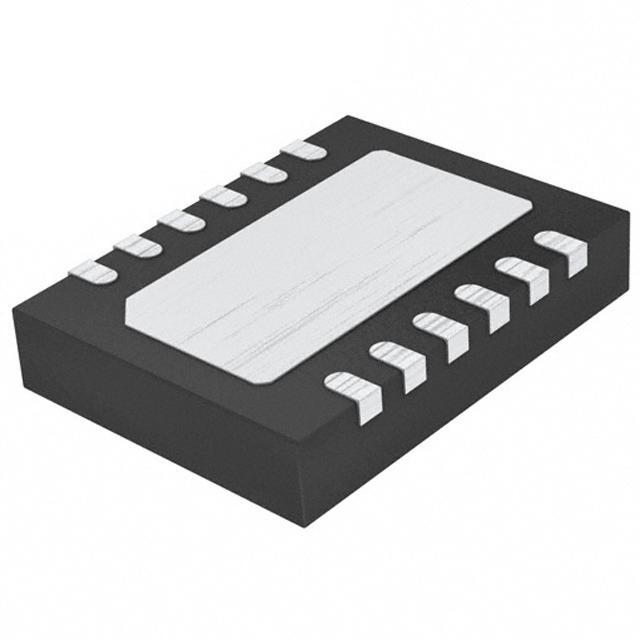

Package 12-WFDFN Exposed Pad
Manufacturer Package 12-DFN (4x3)
Voltage - Working 4 ~ 80V
Win Source Part Number 781446-LT4363CDE-2#TRPBF
Popularity Medium
Supply and Demand Status Balance
Family Name LT4363
Introduction Date December 20, 2011
ECCN EAR99
Country of Origin Malaysia
Halogen Free Compliant
Estimated EOL Date 2031
Ultra Librarian 3D Model Ultra Librarian LT4363CDE-2#TRPBF CAD Model

Description

LT4363CDE-2#TRPBF - High Voltage Surge Stopper with Current Limit

The LT4363CDE-2#TRPBF is a robust surge stopper device designed to protect sensitive electronic circuits from high voltage transients and surges. Manufactured by Linear Technology, now part of Analog Devices, this component provides a safeguarding solution for systems that are exposed to unpredictable voltage spikes, which can occur due to lightning strikes, power supply faults, or load dump in automotive environments.

At the heart of the LT4363CDE-2#TRPBF's functionality is its capability to control the gate of an external N-channel MOSFET to act as a variable resistor during the onset of a surge, effectively limiting the output voltage to a safe threshold. This ensures that the downstream electronics are shielded from the excessive voltage, while also providing a current limit to prevent damage from overcurrent conditions.

The device operates over a wide input voltage range from 4V to 80V, making it versatile for various applications, including automotive, industrial, avionics, and telecom systems. The LT4363CDE-2#TRPBF also features an adjustable fault timer, which provides a controlled operation during prolonged overvoltage conditions, and an auto-retry function that allows the system to recover once the fault condition has been removed.

For ease of integration into existing designs, the LT4363CDE-2#TRPBF is available in a compact 12-lead (4mm × 3mm) DFN package, which is suitable for space-constrained applications. The device also includes other useful features such as an adjustable input undervoltage lockout, a status flag output to indicate fault conditions, and an ON pin to enable or disable the device.

Overall, the LT4363CDE-2#TRPBF surge stopper provides a reliable and efficient solution for protecting sensitive electronics from voltage spikes. Its combination of high-voltage operation, precise control, and compact packaging makes it an excellent choice for engineers looking to enhance the durability and reliability of their power management systems.
