The LT1019CH-5 is a high-performance voltage reference module from Linear Technology, designed to offer a precise 5V output with exceptional stability and accuracy. This precision voltage reference is an ideal choice for high-end applications that require a reliable and consistent voltage source for accurate analog-to-digital conversions, instrumentation, and control systems.
Key Features
- Output Voltage: Fixed 5V with high accuracy.
- Temperature Stability: Excellent stability over the entire temperature range, ensuring consistent performance.
- Low Noise: Designed to minimize output noise, making it suitable for sensitive electronics and precision instruments.
- Low Dropout Voltage: Capable of maintaining output accuracy even with minimal difference between input and output voltages.
- Long-Term Stability: Exhibits minimal deviation over time, which is crucial for applications requiring long-term reliability.
- Package: Housed in a hermetically sealed package, providing robust protection against environmental factors.
Applications
- Data Conversion: Ideal for A/D and D/A conversion, providing a stable reference voltage to ensure accurate readings.
- Instrumentation: Suitable for precision measurement devices where consistent voltage levels are imperative.
- Industrial Control Systems: Provides a stable reference for sensors and actuators in industrial environments.
- Power Supplies: Can be used in power supply circuits to regulate and stabilize output voltages.
Technical Specifications
Parameter
Value
Output Voltage
5V ±0.05%
Temperature Coefficient
10ppm/°C max
Input Voltage Range
7V to 36V
Load Regulation
0.15% max
Line Regulation
0.05% max

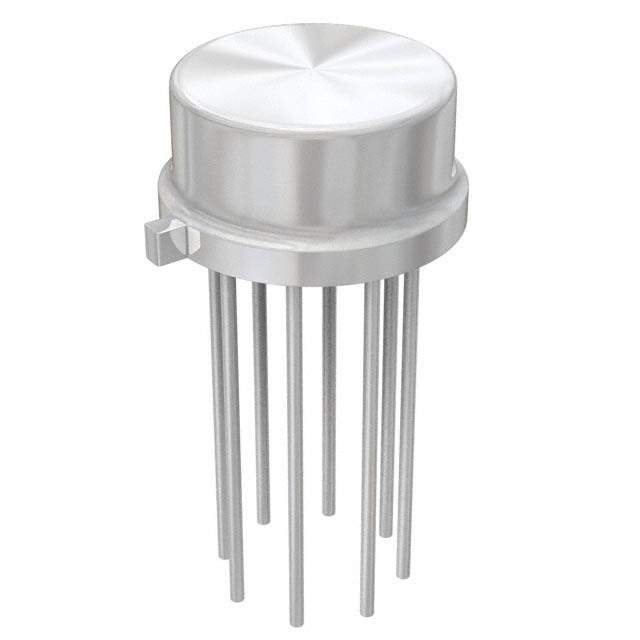

Package Type
TO-5
With its robust design and high precision, the LT1019CH-5 from Linear Technology stands out as a superior voltage reference source for demanding applications that require the highest level of accuracy and reliability.
