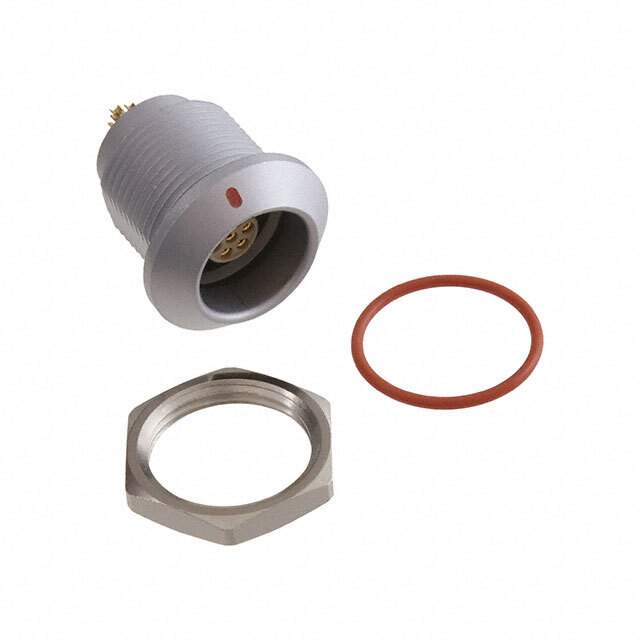

EGG.1K.307.CLL Real Image
Same model may have multiple batches, images only for reference.

EGG.1K.307.CLL

Part No EGG.1K.307.CLL
Manufacturer LEMO
Catalog Circular Connectors - Assemblies
Description CONN RCPT FMALE 7P GOLD SLDR CUP / 7 Position Circular Connector Receptacle, Female Sockets Solder Cup
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Circular Connectors - Circular Connector Assemblies
Mfr LEMO
Series 1K
Package Bulk
Connector Type Receptacle, Female Sockets
Number of Positions 7
Shell Size - Insert 307
Mounting Type Panel Mount
Mounting Feature Bulkhead - Rear Side Nut
Termination Solder Cup
Fastening Type Push-Pull
Orientation G
Primary Material Metal
Shell Material Brass
Shell Finish Chrome
Contact Finish - Mating Gold
Color Silver
Ingress Protection IP66/IP68 - Dust Tight, Water Resistant, Waterproof
Material Flammability Rating UL94 V-0
Shielding Shielded
Current Rating (Amps) 7A
Temperature Range - Operating -55°C ~ 200°C
Contact Material Bronze
Contact Finish Thickness - Mating 59.0µin (1.50µm)
Insert Material Polyetheretherketone (PEEK)
Base Product Number EGG.1K
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4020
California Prop 65 Warning Information
Win Source Part Number 1338090-EGG.1K.307.CLL
Ultra Librarian 3D Model Ultra Librarian EGG.1K.307.CLL CAD Model

Description

The 1338090-EGG.1K.307.CLL is a circular connector assembly manufactured by LEMO.

  • Positions: 7
  • Connector Type: Receptacle with Female Sockets
  • Shielded: Yes
  • Ingress Protection: IP66/IP68
  • Contact Material: Bronze
  • Contact Finish: Gold
  • Mating Contact Finish Thickness: 59.0µin (1.50µm)
  • Shell Size: 307
  • Mounting Feature: Bulkhead - Rear Side Nut
  • Cable Opening: Not Specified
  • Mounting Type: Panel Mount
  • Temperature Range: -55°C to 200°C
  • Shell Material: Brass
  • Shell Finish: Chrome
  • Insert Material: Polyetheretherketone (PEEK)
  • MSL Level: 1 (Unlimited)
  • REACH: REACH Unaffected
  • HTSUS: 8536.69.4020
