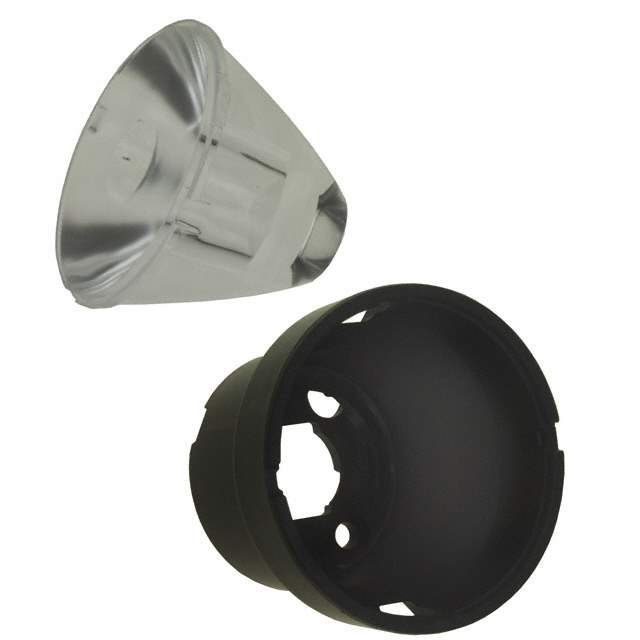

CN10861_IRIS Real Image
Same model may have multiple batches, images only for reference.

CN10861_IRIS

Part No CN10861_IRIS
Manufacturer Ledil
Catalog Optics - Lenses
Description LENS CLR 10-17DEG SPOT ADH SCREW  /  Lens with Holder Clear 10° ~ 17° Spot Adhesive, Screw
Datasheet
CN10861_IRIS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>Optics - Lenses
Mfr Ledil
Series IRIS
Package Bag
Product Status Obsolete
Type Lens with Holder
Color Clear
Number of LEDs 1
Lens Style Round with Flat Top
Lens Size 38mm Dia
Lens Transparency Diffused
Optical Pattern Spot
Viewing Angle 10° ~ 17°
For Use With/Related Manufacturer Cree, Lumileds, Osram, Seoul
Material Acrylic
Mounting Type Adhesive, Screw
Base Product Number CN10861
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 9001.90.4000
Other Names CN10861IRIS,CA10861_IRIS,711-1071
Standard Package 116
Win Source Part Number 1140299-CN10861_IRIS
Ultra Librarian 3D Model Ultra Librarian CN10861_IRIS CAD Model

Description

The Ledil CN10861_IRIS is an obsolete lens with a holder that is used in optoelectronics.

  • Lens Color: Clear
  • Lens Style: Diffused
  • Mounting Type: Adhesive or Screw
  • Viewing Angle: 10-17 degrees
  • Compatible Products: Cree, Lumileds, Osram, and Seoul
  • MSL: 1 (unlimited)
  • REACH: Unaffected
  • HTSUS: 9001.90.4000
