Same model may have multiple batches, images only for reference.

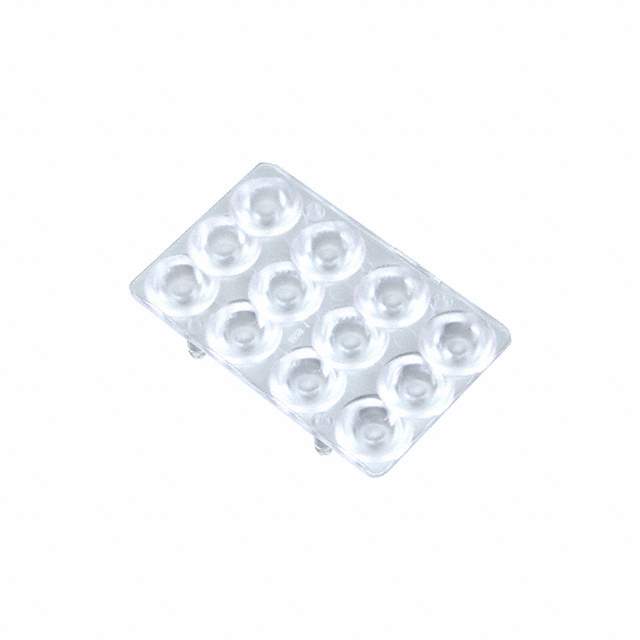

C16520_PETUNIA2 Real Image
Same model may have multiple batches, images only for reference.

C16520_PETUNIA2

Part No C16520_PETUNIA2
Manufacturer Ledil
Catalog Optics - Lenses
Description LENS CLEAR 22-31DEG MEDIUM SNAP  /  Lens Clear 22° ~ 31° Medium Snap In
Datasheet
C16520_PETUNIA2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>Optics - Lenses
Mfr Ledil
Series Petunia2
Package Tray
Type Lens
Color Clear
Number of LEDs 12
Lens Style Rectangle with Multiple Top
Lens Size 46.5mm x 29.5mm
Optical Pattern Medium
Viewing Angle 22° ~ 31°
For Use With/Related Manufacturer Cree, Lumileds, Nichia, Osram
Material Acrylic
Mounting Type Snap In
Base Product Number C16520
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 9001.90.4000
Other Names 711-1587
Standard Package 40
Win Source Part Number 1183180-C16520_PETUNIA2
Ultra Librarian 3D Model Ultra Librarian C16520_PETUNIA2 CAD Model

Description

The Petunia2 lens is a high-quality lens that is suitable for various optoelectronics applications.

  • Shape: Rectangular
  • Tops: Multiple
  • Optical Pattern: Medium
  • Lens Size: 46.5mm x 29.5mm
  • Viewing Angle: 22° ~ 31°
  • Material: Acrylic
  • Mounting: Snap-In
  • Compatible Brands: Cree, Lumileds, Nichia, Osram
  • Win Source Part Number: 1183180-C16520_PETUNIA2
  • Package: Tray
