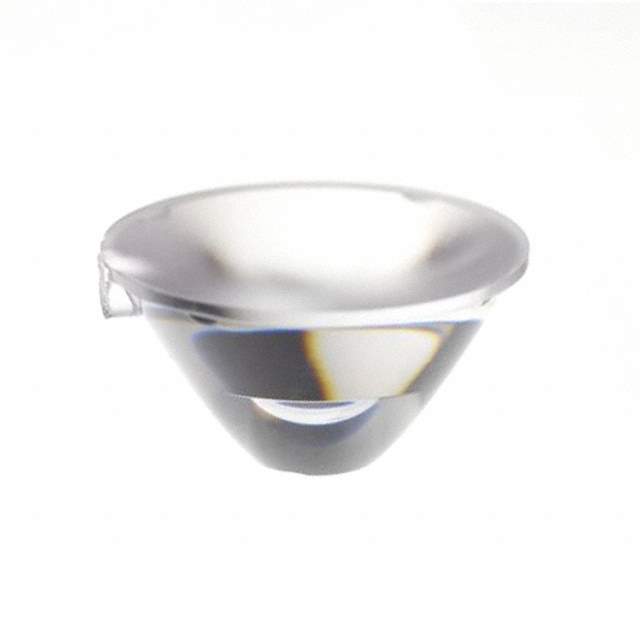

10393 Real Image
Same model may have multiple batches, images only for reference.

10393

Part No 10393
Manufacturer Carclo Technical Plastics
Catalog Optics - Lenses
Description LENS CLR 15-30DEG MEDIUM SNAP-IN
Datasheet
10393 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics - Lenses
Mfr Carclo Technical Plastics
Package Tray
Product Status Active
Type Lens Only, Holder Required
Color Clear
Number of LEDs 1
Lens Style Round with Flat Top
Lens Size 26.5mm Dia
Lens Transparency Diffused
Optical Pattern Medium
Viewing Angle 15° ~ 30°
For Use With/Related Manufacturer Avago, Cree, Led Engin, Lumileds, Luminus, Nichia, Osram, Plessey, Samsung, Seoul, Stanley, Toshiba
Material Polycarbonate
Mounting Type Snap-In
Standard Package 48 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8539.90.0000
Win Source Part Number 853645-10393
Ultra Librarian 3D Model Ultra Librarian 10393 CAD Model

Description

The 853645-10393 is a lens for optoelectronics manufactured by Carclo Technical Plastics.

  • Lens Type: Round
  • Top Surface: Flat
  • Mounting Requirement: Holder Required
  • Lens Size: 26.5mm Diameter
  • Transparency: Diffused
  • Material: Polycarbonate
  • Viewing Angle: 15° to 30°
  • Manufacturer Compatibility: Avago, Cree, Led Engin, Lumileds, Luminus, Nichia, Osram, Plessey, Samsung, Seoul, Stanley, Toshiba
  • Package Type: Tray
  • Standard Package: 48 pcs
  • Operating Temperature Range: -55°C to 125°C
  • Product Status: Active
