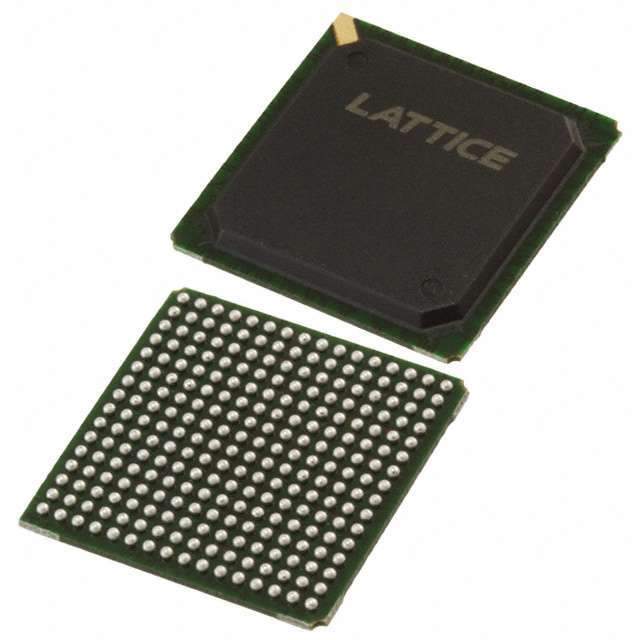

LC5256MB-5FN256C Real Image
Same model may have multiple batches, images only for reference.

LC5256MB-5FN256C

Part No LC5256MB-5FN256C
Manufacturer Lattice Semiconductor Corporation
Catalog Embedded - CPLDs (Complex Programmable Logic Devices)
Description IC CPLD 256MC 5NS 256FBGA / 3.3V, 2.5V and 1.8V In-System Programmable eXpanded Programmable Logic Device XPLD™ Family
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Lattice Semiconductor Corporation
Packaging Tray
Part Status Obsolete (End Of Life)
Programmable Type In System Programmable
Delay Time tpd(1) Max 5ns
Voltage Supply - Internal 2.3V ~ 2.7V
Number of Logic Elements/Blocks 8
Number of Macrocells 256
Number of I/O 141
Temperature Range - Operating 0°C ~ 90°C
Mounting Style SMD
Manufacturer Package 256-BGA
Supplier Device Package 256-FPBGA (17x17)
Part Number Series LC5256
Manufacturer Pack Quantity 90
MSL Level 3 (168 Hours)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 808720-LC5256MB-5FN256C
Ultra Librarian 3D Model Ultra Librarian LC5256MB-5FN256C CAD Model

Description

The Lattice Semiconductor Corporation LC5256 series IC is an in-system programmable device that has a delay time tpd(1) max of 5ns and 8 logic elements/blocks.

  • I/Os: 141
  • Macrocells: 256
  • Supplier Device Package: 256-FPBGA (17x17)
  • Operating Voltage: 2.3V to 2.7V
  • Mounting Type: SMD
  • Temperature Range: 0°C to 90°C
  • Manufacturer Pack Quantity: 90
  • MSL Level: 3 (168 hours)
