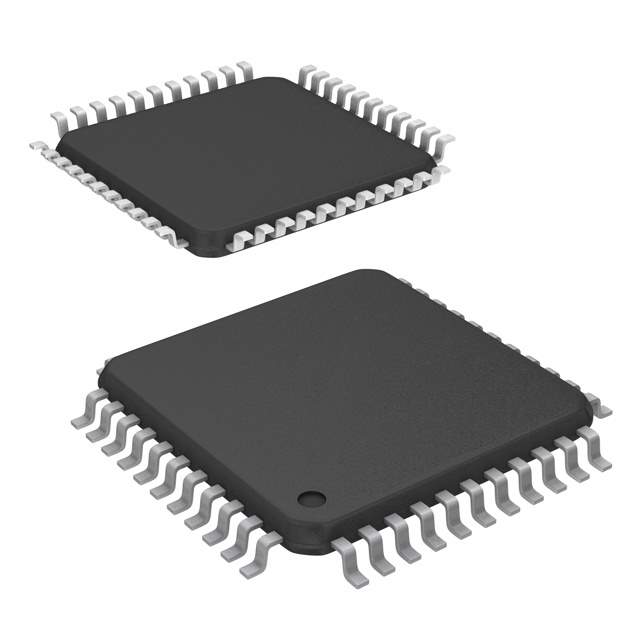

The ISPLSI1016-90LT is a programmable logic device (PLD) manufactured by Lattice Semiconductor Corporation. This device belongs to the ispLSI 1000 family, known for its cost-effective and versatile architecture. The ISPLSI1016-90LT is designed for a variety of applications requiring programmable logic functions.

Applications:

• Address decoding: Used to decode memory addresses in embedded systems.
• Glue logic: Implemented to interface between different digital components.
• State machines: Employed to implement sequential logic circuits.
• Peripheral control: Utilized to control and manage peripheral devices.
• Industrial automation: Applied in automation systems for logic control.

Features:

• In-system programmability (ISP): Allows for easy programming and reprogramming of the device after it has been installed in the system.
• High speed: Offers a propagation delay of 9ns, which is suitable for fast operation.
• Low power consumption: Designed for energy-efficient operation, reducing overall system power requirements.
• Flexible I/O: Supports a variety of I/O standards and configurations for versatile connectivity.
• Compact package: Available in compact package options for smaller board footprints.

Benefits:

• Reduced time-to-market: Enables rapid prototyping and design iterations, shortening the development cycle.
• Increased design flexibility: Allows for easy modification and customization of logic functions.
• Lower system cost: Reduces the number of discrete components required, lowering the overall system cost.
• Simplified design: Eases the design process by integrating multiple logic functions into a single device.
• Improved system reliability: Enhances system robustness and stability.

Additional Details:

The ISPLSI1016-90LT features a programmable AND-OR array that allows for the implementation of custom logic functions. It also includes programmable input and output pins that can be configured for different voltage levels and signal standards. The device is commonly programmed using industry-standard programming tools and languages. The operating temperature range and supply voltage requirements are important considerations for specific applications. For detailed specifications, refer to the device datasheet available from Lattice Semiconductor Corporation.
