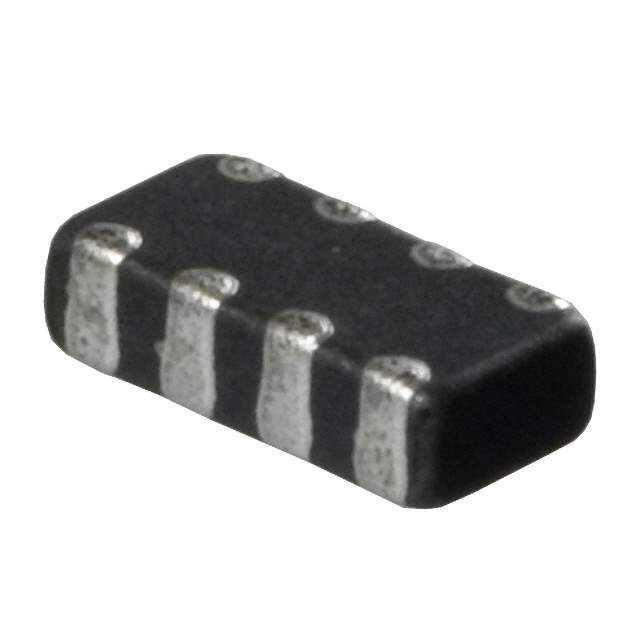

DA1206E300R-10 Real Image1 DA1206E300R-10 Real Image2
Same model may have multiple batches, images only for reference.
DA1206E300R-10 Real Image1 DA1206E300R-10 Real Image2
DA1206E300R-10 Real Image1 DA1206E300R-10 Real Image2
Same model may have multiple batches, images only for reference.

DA1206E300R-10

Part No DA1206E300R-10
Manufacturer Laird-Signal Integrity Products
Catalog Ferrite Beads and Chips
Description FERRITE BEAD 30 OHM 1206 4LN / 30 Ohms @ 100 MHz 4 Power, Signal Line Ferrite Bead 1206 (3216 Metric), Array, 8 PC Pad 500mA 300mOhm
Datasheet
DA1206E300R-10 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Ferrite Beads and Chips
Mfr Laird-Signal Integrity Products
Series 1206
Package Tape & Reel
Filter Type Power, Signal Line
Number of Lines 4
Impedance @ Frequency 30 Ohms @ 100 MHz
Current Rating (Max) 500mA
DC Resistance (DCR) (Max) 300mOhm
Ratings -
Temperature Range - Operating -40°C ~ 125°C
Package / Case 1206 (3216 Metric), Array, 8 PC Pad
Mounting Type Surface Mount
Height (Max) 0.043" (1.10mm)
Size / Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Moisture Sensitivity Level (MSL) Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Standard Package 3,000 pcs
Win Source Part Number 1381858-DA1206E300R-10
Ultra Librarian 3D Model Ultra Librarian DA1206E300R-10 CAD Model

Description

The DA1206E300R-10 is a ferrite bead and chip filter used in electronic circuits. DA1206E300R-10 is from Laird-Signal Integrity Products.

  • Size / Dimension: 0.126" L x 0.063" W (3.20mm x 1.60mm)
  • Maximum Current: 500mA
  • Impedance @ Frequency: 30 Ohms @ 100 MHz
  • Filter Type: Power and Signal Line
  • DC Resistance (DCR) (Max): 300mOhm
  • Packaging: Tape & Reel (TR)
