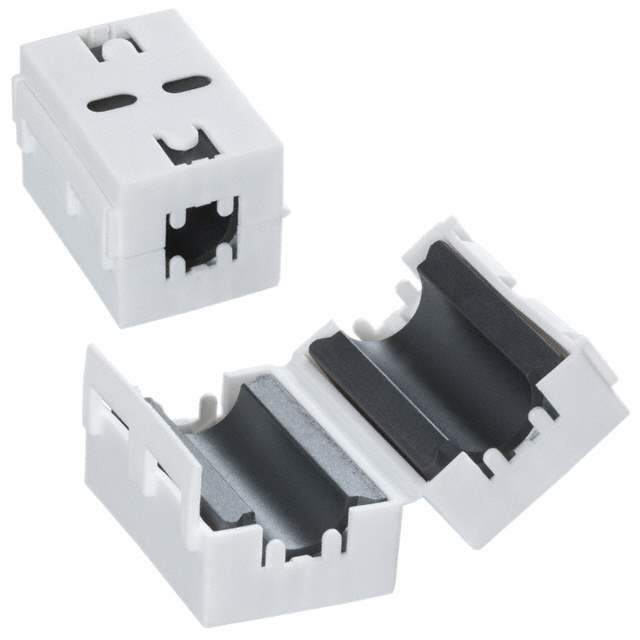

28A2029-0A0 Laird-Signal Integrity Products
Same model may have multiple batches, images only for reference.

28A2029-0A0

Part No 28A2029-0A0
Manufacturer Laird-Signal Integrity Products
Catalog Cable Ferrites
Description FERRITE CORE 250 OHM HINGED
Datasheet
28A2029-0A0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1206163-28A2029-0A0
Manufacturer Laird-Signal Integrity Products
Category Filters-Cable Ferrites
Series 28
Package Tray
Product Status Active
Type Round
Design Hinged (Snap On)
Impedance @ Frequency 250Ohm @ 100MHz
Material 28
Inner Dimension 0.394" W x 0.170" H (10.00mm x 4.30mm)
Outer Dimension 0.877" W x 0.860" H (22.28mm x 21.84mm)
Ultra Librarian 3D Model Ultra Librarian 28A2029-0A0 CAD Model

Description

For retrofit and post-assembly operations, a selection of high frequency EMI “split” cores are offered. Similar in performance to one-piece cylindrical core designs, these split ferrite cores provide excellent common and differential mode high frequency EMI suppression on round cable and wire assemblies. Black plastic snap-on cases provide secure closure of the split cores onto the cable or wire bundle.
