Same model may have multiple batches, images only for reference.

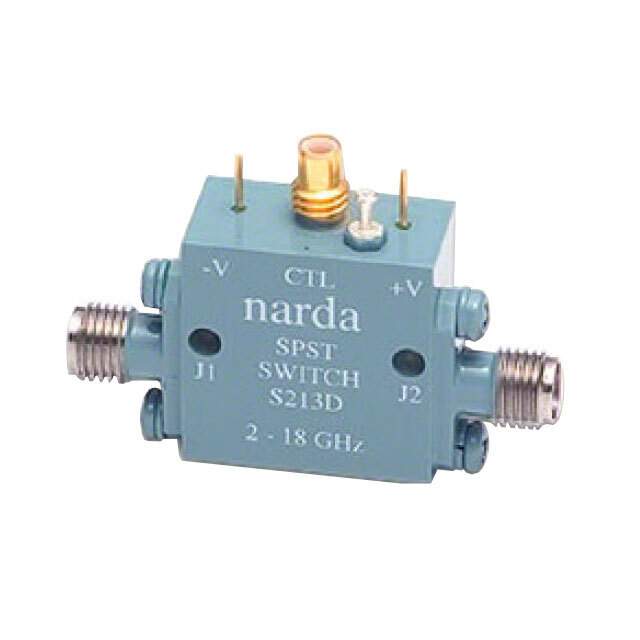

S213D Real Image
Same model may have multiple batches, images only for reference.

S213D

Part No S213D
Manufacturer L3 Narda-MITEQ
Catalog RF Switches
Description 3 WATT PIN SWITCH SPST 2-18 GHZ / RF Switch IC General Purpose SPST Module
Datasheet
S213D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Switches
Mfr L3 Narda-MITEQ
Package Box
RF Type General Purpose
Topology Reflective
Circuit SPST
Frequency Range 2GHz ~ 18GHz
Isolation 55dB (min)
Insertion Loss 2dB (max)
Test Frequency 12GHz ~ 18GHz
Temperature Range - Operating -54°C ~ 95°C
Package / Case Module, SMA Connectors
Supplier Device Package Module
Base Product Number S213
Other Names 1949-1208
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8543.70.9860
Win Source Part Number 1235881-S213D
Ultra Librarian 3D Model Ultra Librarian S213D CAD Model

Description

The S213D is an RF Switch in the RF/IF and RFID category.

  • Circuit: reflective SPST
  • Frequency Range: 2GHz ~ 18GHz
  • Test Frequency: 12GHz ~ 18GHz
  • Insertion Loss: 2dB (max)
  • Isolation: 55dB (min)
  • Case / Package: Module, SMA Connectors
  • Supplier: L3 Narda-MITEQ
  • Operating Temperature: -54°C ~ 95°C
  • ECCN: EAR99 compliant
  • MSL Level: 1 (Unlimited)
  • REACH Status: REACH Unaffected
  • HTSUS code: 8543.70.9860
  • Other names: 1949-1208 and S213
