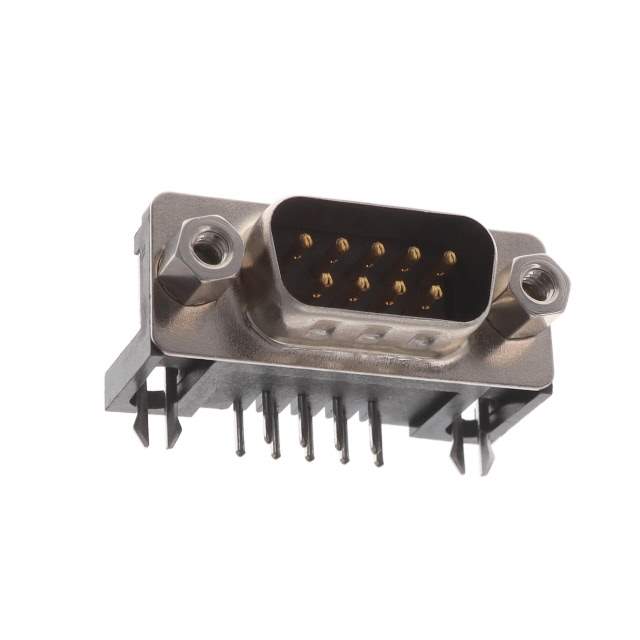

This D-sub connector assembly is a part of the K22XHT series and has 9 positions.

• Series: K22XHT
• Positions: 9
• Color: Black
• Features: Board Lock, Grounding Indents, Male Pins
• Connector Type: Plug
• Contact Type: Signal
• Rows: 2
• Termination: Solder
• Contact Finish: Gold
• Contact Finish Thickness: 30.0µin (0.76µm)
• Package: Tray
• Contact Form: Stamped
• Contact Material: Brass
• Connector Style: D-Sub
• Voltage Rating: 30V
• Material Flammability Rating: UL94 V-0
• Shell Material: Steel with Nickel Plated Finish
• Dielectric Material: Thermoplastic and Glass-Filled
• Shell Size and Connector Layout: 1 (DE, E)
• Mounting Type: Through Hole and Right Angle
• Operating Temperature: -55°C to 105°C
• Backset Spacing: 0.318" (8.08mm)
• MSL Level: 1 (Unlimited)
• Current Rating: 2A
• HTSUS: 8536.69.4040
• Manufacturer: Kycon, Inc.
