Same model may have multiple batches, images only for reference.

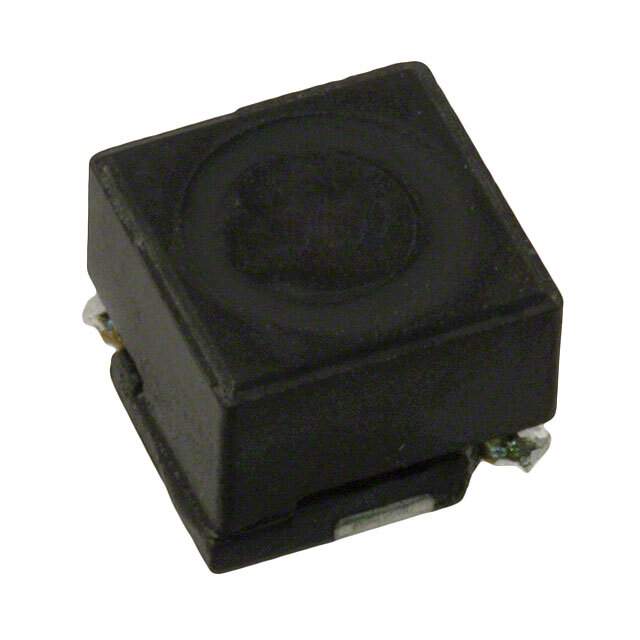

SRR0604-150ML Real Image
Same model may have multiple batches, images only for reference.

SRR0604-150ML

Part No SRR0604-150ML
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SRR0604-150ML Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SRR0604
Package Tape & Reel (TR),Cut Tape (CT)
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 15 µH
Tolerance ±20%
Current Rating (Amps) 1.1 A
Current - Saturation (Isat) 1.45A
Shielding Shielded
DC Resistance (DCR) 130mOhm Max
Q @ Freq 18 @ 2.52MHz
Frequency - Self Resonant 30MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting SMD (SMT)
Package / Case Nonstandard, Corner Terminals
Dimension 0.256" L x 0.256" W (6.50mm x 6.50mm)
Height - Seated (Max) 0.189" (4.80mm)
Base Product Number SRR0604
Other Names SRR0604-150MLCT,SRR0604-150MLTR,SRR0604150ML,-SRR0604-150ML,-SRR0604-150MLCT,-SRR0604-150MLTR
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1273753-SRR0604-150ML
Ultra Librarian 3D Model Ultra Librarian SRR0604-150ML CAD Model

Description

The Bourns Inc. SRR0604-150ML is a drum core, wirewound inductor that features a ferrite core material.

  • Inductance: 15 µH
  • Tolerance: ±20%
  • DC Resistance: 130mOhm Max
  • Current Rating: 1.1 A
  • Shielded: Yes
  • Q @ Freq: 18 @ 2.52MHz
  • Frequency - Self Resonant: 30MHz
  • Package/Case: nonstandard, corner terminals
  • Height: 0.189" (4.80mm) when seated
  • Mounting: surface mount
  • Temperature Range: -40°C ~ 125°C
  • Package: tape & reel (TR), cut tape (CT)
  • Standard Package: 1,000
  • Ideal for: power supplies, DC-DC converters, and filtering
