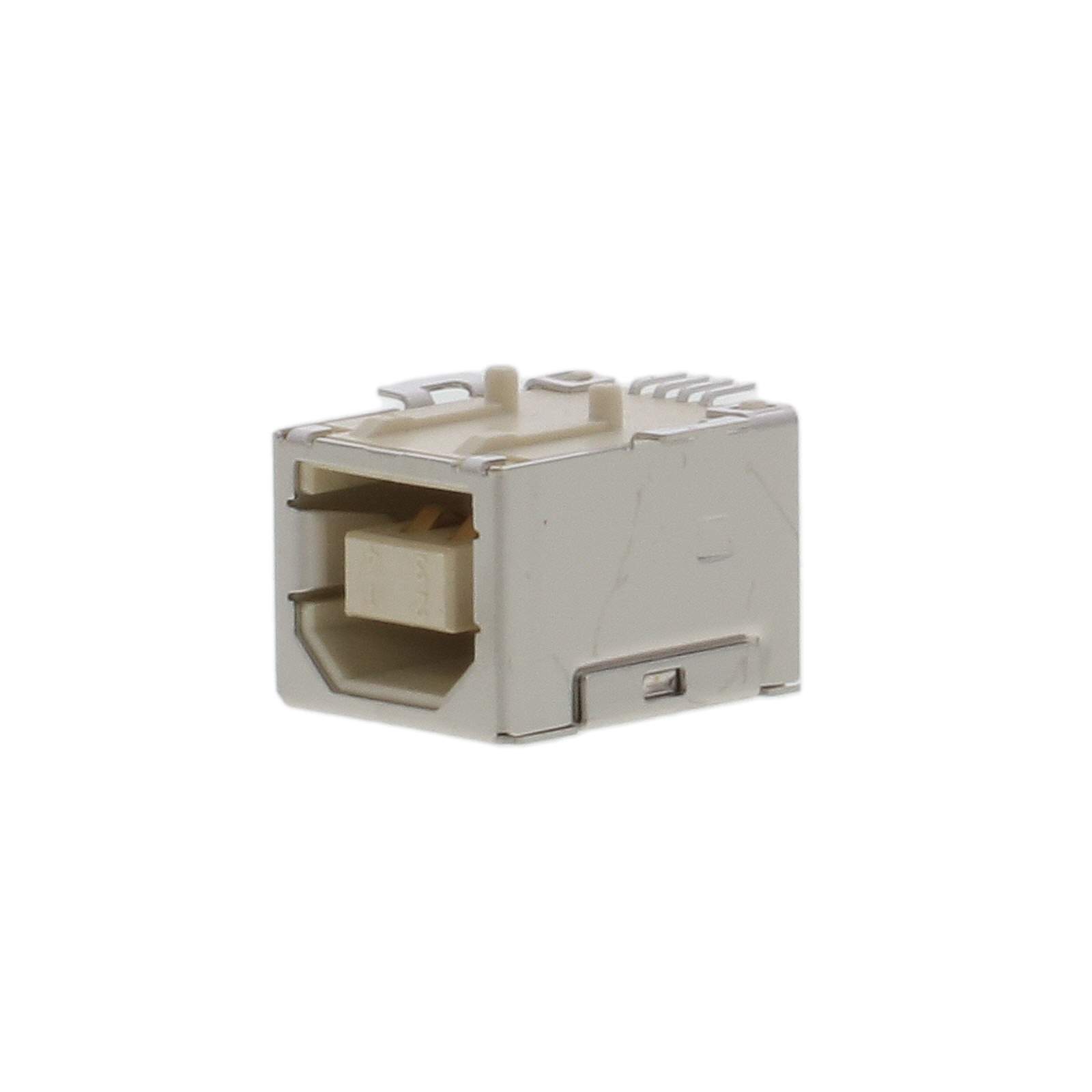

KUSBX-SMT-BS1N-W Real Image
Same model may have multiple batches, images only for reference.

KUSBX-SMT-BS1N-W

Part No KUSBX-SMT-BS1N-W
Manufacturer Kycon, Inc.
Catalog USB, DVI, HDMI Connectors
Description SMT USB B-TYPE RECEPTACLE WHITE
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Kycon, Inc.
Packaging Tray
Connector Type USB - B
Number of Contacts 4
Gender Receptacle
Mounting Style Surface Mount, Right Angle
Mounting Feature Horizontal
Termination Solder
Features Board Guide, Solder Retention
Temperature Range - Operating -40°C ~ 85°C
Number of Ports 1
Current Rating (Amps) 1A
Voltage - Rated 30VAC/DC
Mating Cycles 1500
Shielding Shielded
Contact Finish Gold
Shell/Shielding Material Brass
Material Flammability Rating UL94 V-0
Insulation Color White
Manufacturer Pack Quantity 100
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 808767-KUSBX-SMT-BS1N-W
Ultra Librarian 3D Model Ultra Librarian KUSBX-SMT-BS1N-W CAD Model

Description

The Kycon KUSBX-SMT-BS1N-W is a USB-B receptacle connector with a shielded design from Kycon, Inc..

  • Voltage Rating: 30VAC/DC
  • Current Rating: 1A
  • Mounting: Horizontal
  • Temperature Range: -40°C to 85°C
  • Mating Cycle: 1500
  • Packaging: Tray
  • Manufacturer Pack Quantity: 100
