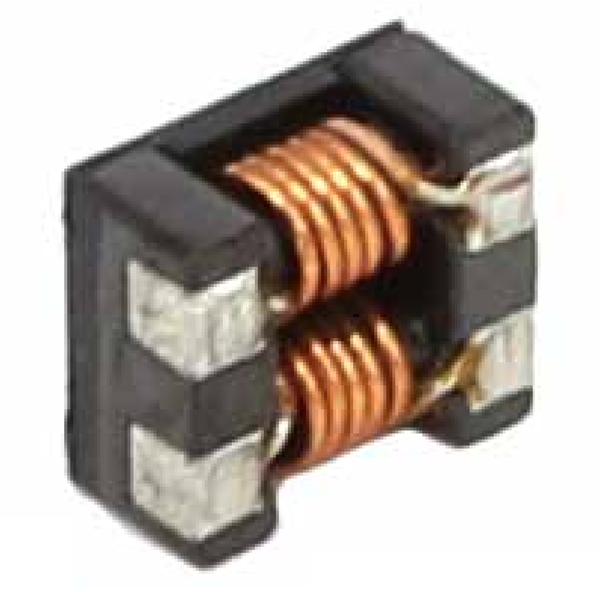

BCMA9070-102Y KOHER（Shanghai）Electronics Co.,Ltd – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

BCMA9070-102Y

Part No BCMA9070-102Y
Manufacturer KOHER（Shanghai）Electronics Co.,Ltd
Catalog Common Mode Chokes
Description CMC 1000Ω@100MHz  4.0A  13mΩ
Datasheet
BCMA9070-102Y Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Saturation Current 4.0A
DC Resistance 13mΩ
Application Measures against common mode noise in power lines for various DC power lines, multimedia devices, and various electronic devices
Soldering Reflow
Preheat condition 150 ~200℃/60~180 sec.
Allowed time above 217℃ 60~150 sec.
Max temperature 260℃.
Max time at max temperature 10 sec.
Allowed Reflow time 3x max
Features Exclusive square type closed magnetic core designed as anexclusive core is used, so it can be small while maintainingthe same features."Low profile design makes it optimal for surface mounting.Excellent impedance characteristics, making it great forsuppressing common mode noise.Maximum 15A can be used in 125°C environments.
Operating temperature range -40 to +125°C
Quantity 800pcs
Ultra Librarian 3D Model Ultra Librarian BCMA9070-102Y CAD Model
