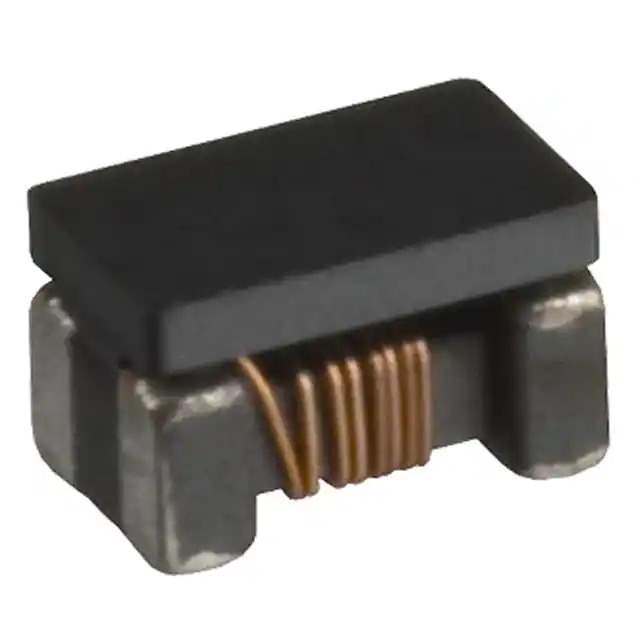

ACM2012H-900-2P-T05 Real Image
Same model may have multiple batches, images only for reference.

ACM2012H-900-2P-T05

Part No ACM2012H-900-2P-T05
Manufacturer TDK Corporation
Catalog Common Mode Chokes
Description CMC 300MA 2LN 90 OHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Common Mode Chokes
Mfr TDK Corporation
Series ACM-H
Package Tape & Reel
Product Status Active
Filter Type Signal Line
Number of Lines 2
Impedance @ Frequency 90 Ohms @ 100 MHz
Current Rating (Max) 300mA
DC Resistance (DCR) (Max) 300mOhm
Voltage Rating - DC 20V
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Surface Mount
Size / Dimension 0.079" L x 0.047" W (2.00mm x 1.20mm)
Height (Max) 0.051" (1.30mm)
Package / Case Horizontal, 4 PC Pad
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 845506-ACM2012H-900-2P-T05
Ultra Librarian 3D Model Ultra Librarian ACM2012H-900-2P-T05 CAD Model

Description

The ACM2012H-900-2P-T05 is a common mode choke from TDK Corporation.

  • Mounting Type: Surface Mount
  • Packaging: Tape & Reel
  • Package Size: Horizontal with 4 PC Pad
  • Voltage - DC: 20V
  • Size / Dimension: 0.079" L x 0.047" W (2.00mm x 1.20mm)
  • Current Rating (Max): 300mA
  • Number of Lines: 2
  • Impedance @ Frequency: 90 Ohms @ 100 MHz
  • DC Resistance (DCR): 300mOhm
  • Operating Temperature: -40°C ~ 85°C
  • MSL: 1 (Unlimited)
  • HTSUS: 8548.00.0000
  • Lifecycle Status: Active
  • Series: ACM-H
  • Manufacturer: TDK Corporation
