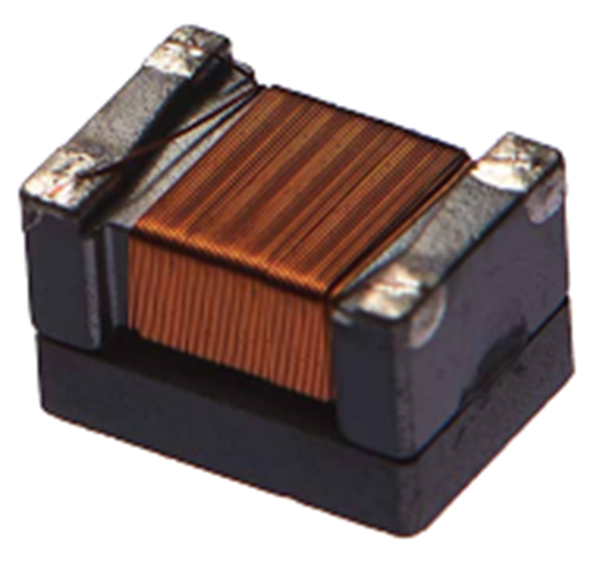

ACMA4532-220Y KOHER（Shanghai）Electronics Co.,Ltd – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

ACMA4532-220Y

Part No ACMA4532-220Y
Manufacturer KOHER（Shanghai）Electronics Co.,Ltd
Catalog Common Mode Chokes
Description CMC 22uH  310mA  1.0Ω
Datasheet
ACMA4532-220Y Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Common Mode Chokes
L@100kHz/0.1V(μH) 22uH
Saturation Current 310mA
DC Resistance 1.0Ω
Application CAN-BUS, FlexRay system
Soldering Reflow
Preheat condition 150 ~200℃/60~150 sec.
Allowed time above 217℃ 60~180 sec.
Max temperature 260℃.
Max time at max temperature 10 sec.
Allowed Reflow time 3x max
Features Compact products, whose characteristics areequivalent to that of conventional products"Common mode filters for Signal Line"
Operating temperature range -55 to +150°C"
Quantity 500pcs
Ultra Librarian 3D Model Ultra Librarian ACMA4532-220Y CAD Model
