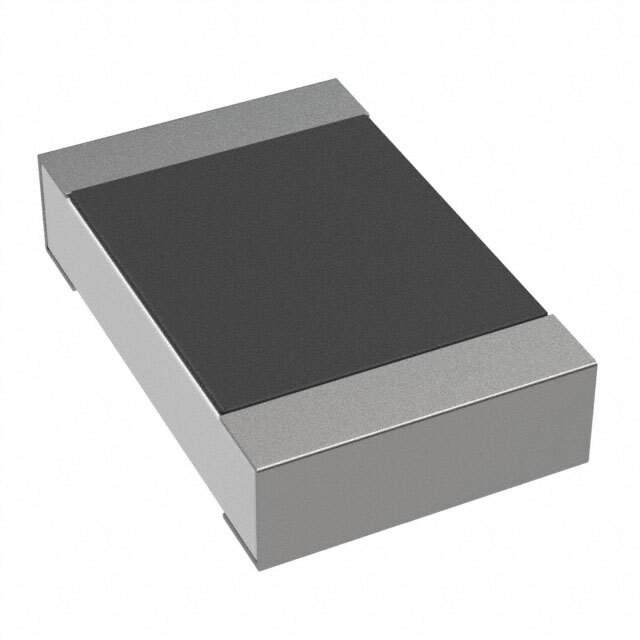

Same model may have multiple batches, images only for reference.

RK73B2ATTD152J

Name: RK73B2ATTD152J
Brand: KOA Speer
SKU: 1088512
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	RK73B2ATTD152J
Manufacturer	KOA Speer
Catalog	Chip Resistor - Surface Mount
Description	RES 1.5K OHM 5% 1/4W 0805 / 1.5 kOhms ±5% 0.25W, 1/4W Chip Resistor 0805 (2012 Metric) Automotive AEC-Q200 Thick Film
Datasheet	RK73B2ATTD152J Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Resistors>Chip Resistor - Surface Mount
Mfr	KOA Speer Electronics, Inc.
Series	RK73B
Package	Tape & Reel
Resistance	1.5 kOhms
Tolerance	±5%
Power (Watts)	0.25W, 1/4W
Composition	Thick Film
Features	Automotive AEC-Q200
Temperature Coefficient	±200ppm/°C
Temperature Range - Operating	-55°C ~ 155°C
Package / Case	0805 (2012 Metric)
Supplier Device Package	0805
Ratings	AEC-Q200
Dimension	0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max)	0.024" (0.60mm)
Number of Terminations	2
Base Product Number	RK73B2A
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8533.21.0030
Other Names	2019-RK73B2ATTD152JDKR,2019-RK73B2ATTD152JTR,2019-RK73B2ATTD152JCT
Standard Package	5,000
Win Source Part Number	1088512-RK73B2ATTD152J
Ultra Librarian 3D Model	Ultra Librarian RK73B2ATTD152J CAD Model

Description

The RK73B2ATTD152J is a chip resistor from KOA Speer Electronics, Inc.

Resistance: 1.5 kOhms
Power Rating: 0.25W (1/4W)
Tolerance: ±5%
Temperature Coefficient: ±200ppm/°C
Rating: AEC-Q200 for automotive applications
Composition: Thick film
Terminations: Two
Package Size: 0805 (2012 Metric)
Height: 0.024" (0.60mm)
Operating Temperature: -55°C to 155°C
Packaging: Tape and reel
Market Availability: Commonly used part
Alternative Part: Available in an alternative cross-reference part number
