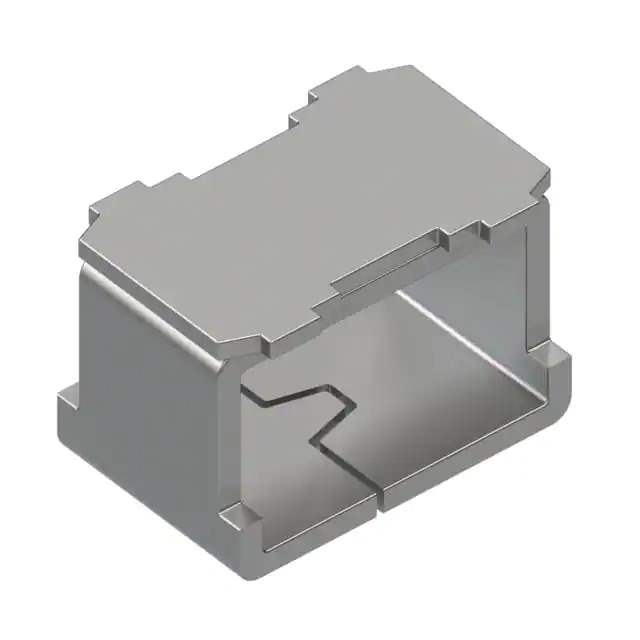

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Test and Measurement - Test Points
Mfr KOA Speer
Series RC
Package Tape & Reel
Product Status Active
Type PC Test Point
Mounting Type Surface Mount
Size / Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height 0.049" (1.25mm)
Plating Tin
Material - Insulation No Insulation
Material - Body Steel
Standard Package 2,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 7409.29.0090
Win Source Part Number 291522-RCSCTE
Ultra Librarian 3D Model Ultra Librarian RCSCTE CAD Model

Description

The RCSCTE is a PC test point designed for surface mount applications.

  • Series: RC series
  • Manufacturer: KOA Speer
  • Size: 0.126" L x 0.063" W (3.20mm x 1.60mm)
  • Package: Tape & reel package
  • Material: Steel
  • Plating: Tin plating
  • Height: 0.049" (1.25mm)
  • Status: Active product in the market
  • Advantage: Offering high-quality and reliable performance for your test and measurement applications.
