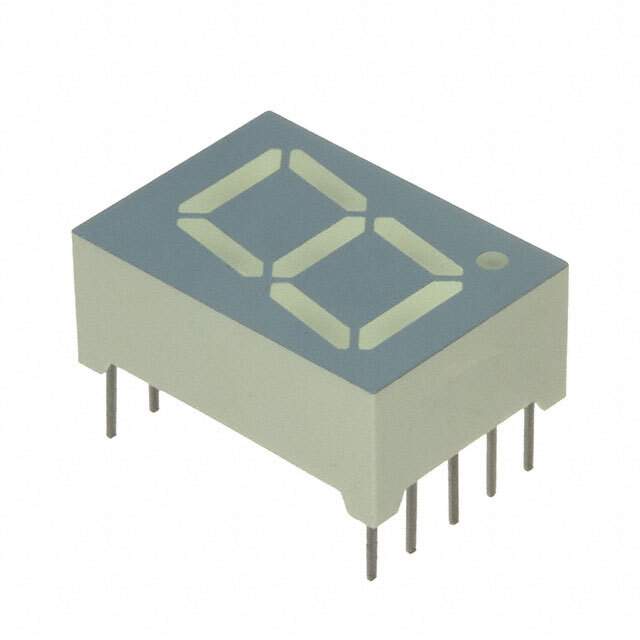

SA52-11EWA Real Image
Same model may have multiple batches, images only for reference.

SA52-11EWA

Part No SA52-11EWA
Manufacturer Kingbright
Catalog Display Modules - LED Character and Numeric
Description DISPLAY 7SEG 0.52" SGL RED 10DIP  /  Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Anode 2V 20mA 0.689" H x 0.488" W x 0.276" D (17.50mm x 12.40mm x 7.00mm) 10-DIP (0.600", 15.24mm)
Datasheet
SA52-11EWA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>Display Modules - LED Character and Numeric
Mfr Kingbright
Package Tube
Number of Characters 1
Dimension 0.689" H x 0.488" W x 0.276" D (17.50mm x 12.40mm x 7.00mm)
Digit/Alpha Size 0.52" (13.21mm)
Display Type 7-Segment
Common Pin Common Anode
Color Red
Voltage - Forward (Vf) (Typ) 2V
Current - Test 20mA
Millicandela Rating 6.4mcd
Wavelength - Peak 627nm
Power Dissipation (Max) 75mW
Package / Case 10-DIP (0.600", 15.24mm)
Base Product Number SA52-11
Other Names SA52-11EWA,754-2281
Standard Package 40
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1242702-SA52-11EWA
Ultra Librarian 3D Model Ultra Librarian SA52-11EWA CAD Model

Description

The SA52-11EWA is a 7-segment LED display module from Kingbright.

  • Color: Red
  • Peak Wavelength: 627nm
  • Digit/Alpha Size: 0.52 inches (13.21mm)
  • Pin Configuration: Common anode
  • Operating Voltage: 2V
  • Test Current: 20mA
  • Millicandela Rating: 6.4mcd
  • Maximum Power Dissipation: 75mW
  • Package/Case: 10-DIP (0.600 inches, 15.24mm)
  • Dimensions: 0.689 inches H x 0.488 inches W x 0.276 inches D (17.50mm x 12.40mm x 7.00mm)
