Same model may have multiple batches, images only for reference.

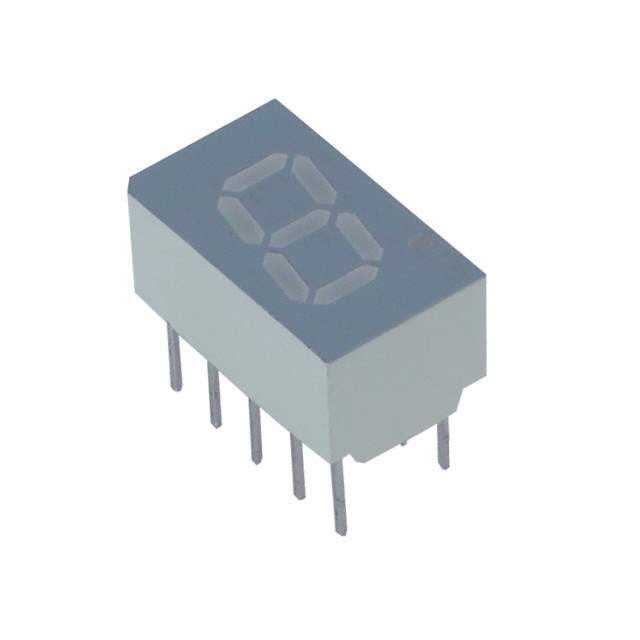

LSHD-7501 Real Image
Same model may have multiple batches, images only for reference.

LSHD-7501

Part No LSHD-7501
Manufacturer Lite-On Inc.
Catalog Display Modules - LED Character and Numeric
Description DISPLAY 7-SEG 0.3" SGL RED 10DIP / Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Anode 2.1V 20mA 0.500" H x 0.300" W x 0.240" D (12.70mm x 7.62mm x 6.09mm) 10-DIP (0.200", 5.08mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>Display Modules - LED Character and Numeric
Manufacturer Lite-On Inc.
Packaging Tube
Number of Characters 1
Size / Dimension 0.500" H x 0.300" W x 0.240" D (12.70mm x 7.62mm x 6.09mm)
Digit/Alpha Size 0.30" (7.62mm)
Display Type 7-Segment
Common Pin Common Anode
Color Red
Voltage - Forward (Vf) (Typ) 2.1V
Current - Test 20mA
Millicandela Rating 12mcd
Wavelength - Peak 632nm
Power Dissipation (Max) 70mW
Case / Package 10-DIP (0.200", 5.08mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.41.0000
Other Part Number LSHD7501,160-1571-5
Standard Package 39
Win Source Part Number 1331811-LSHD-7501
Ultra Librarian 3D Model Ultra Librarian LSHD-7501 CAD Model

Description

The LSHD-7501 is a red LED character and numeric display module from Lite-On Inc..

  • Package: 10-DIP (0.200", 5.08mm)
  • Standard Package: 39
  • Millicandela Rating: 12mcd
  • Forward Voltage: 2.1V (typical)
  • Current Test: 20mA
  • Peak Power Dissipation: 70mW
  • Display Type: 7-Segment
  • Digit/Alpha Size: 0.30" (7.62mm)
  • Common Anode: Yes
  • Peak Wavelength: 632nm
  • ECCN: EAR99
  • MSL Level: 1 (unlimited)
  • ROHS3 Compliant: Yes
  • HTSUS: 8541.41.0000
