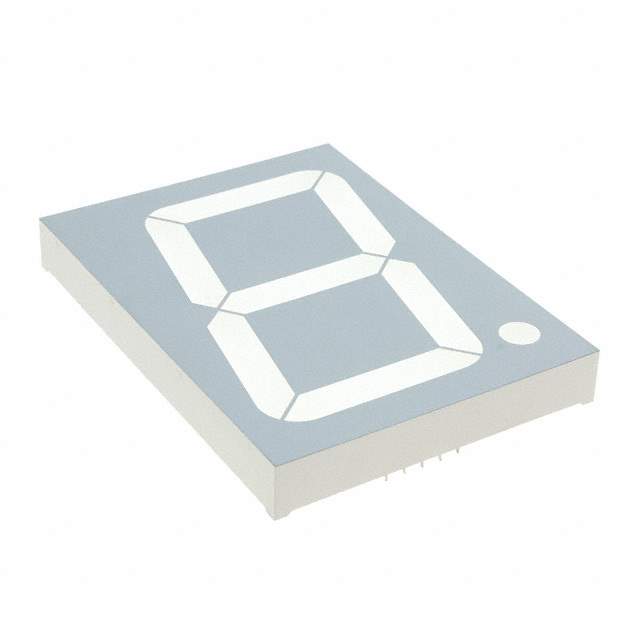

SA40-18GWA Real Image
Same model may have multiple batches, images only for reference.

SA40-18GWA

Part No SA40-18GWA
Manufacturer Kingbright
Catalog Display Modules - LED Character and Numeric
Description DISPLAY 7SEG 3.98" SGL GRN 10DIP / Display Modules - LED Character and Numeric Green 7-Segment 1 Character Common Anode 8.8V 20mA 4.803" H x 3.543" W x 0.591" D (122.00mm x 90.00mm x 15.00mm) 10-DIP (4.210", 107.00mm)
Datasheet
SA40-18GWA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>Display Modules - LED Character and Numeric
Mfr Kingbright
Package Tube
Number of Characters 1
Dimension 4.803" H x 3.543" W x 0.591" D (122.00mm x 90.00mm x 15.00mm)
Digit/Alpha Size 3.98" (101.20mm)
Display Type 7-Segment
Common Pin Common Anode
Color Green
Voltage - Forward (Vf) (Typ) 8.8V
Current - Test 20mA
Millicandela Rating 36mcd
Wavelength - Peak 565nm
Power Dissipation (Max) 500mW
Package / Case 10-DIP (4.210", 107.00mm)
Base Product Number SA40-18
Other Names SA40-18GWA,754-2277
Standard Package 6
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1242571-SA40-18GWA
Ultra Librarian 3D Model Ultra Librarian SA40-18GWA CAD Model

Description

The Kingbright SA40-18GWA is a green colored 7-segment display module.

  • Millicandela Rating: 36mcd
  • Voltage Forward (Vf): 8.8V
  • Package: 6 standard packages
  • Common Pin: Common Anode
  • Dimension: 4.803" H x 3.543" W x 0.591" D (122.00mm x 90.00mm x 15.00mm)
  • REACH: Unaffected
  • ECCN: EAR99
