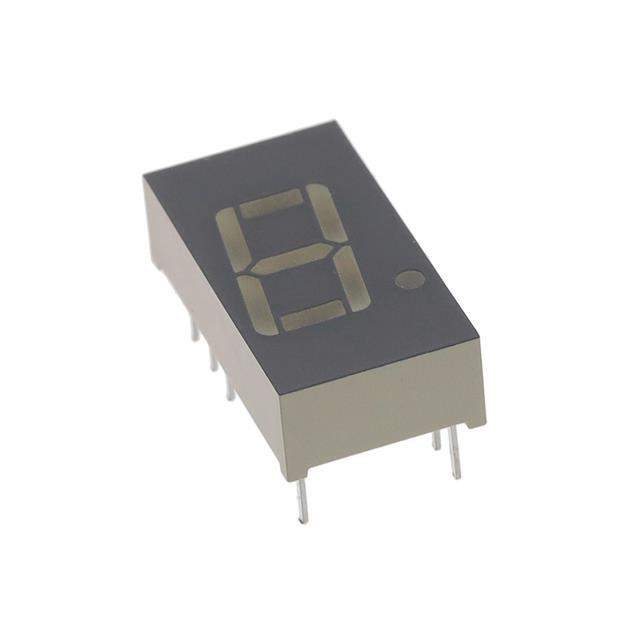

SA04-11SURKWA Real Image
Same model may have multiple batches, images only for reference.

SA04-11SURKWA

Part No SA04-11SURKWA
Manufacturer Kingbright
Catalog Display Modules - LED Character and Numeric
Description DISPLAY 7-SEG 0.4" SGL RED 14DIP / Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Anode 1.95V 20mA 0.738" H x 0.386" W x 0.200" D (18.75mm x 9.80mm x 5.08mm) 14-DIP (0.295", 7.50mm)
Datasheet
SA04-11SURKWA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>Display Modules - LED Character and Numeric
Mfr Kingbright
Package Tube
Number of Characters 1
Dimension 0.738" H x 0.386" W x 0.200" D (18.75mm x 9.80mm x 5.08mm)
Digit/Alpha Size 0.40" (10.16mm)
Display Type 7-Segment
Common Pin Common Anode
Color Red
Voltage - Forward (Vf) (Typ) 1.95V
Current - Test 20mA
Millicandela Rating 80mcd
Wavelength - Peak 645nm
Power Dissipation (Max) 75mW
Package / Case 14-DIP (0.295", 7.50mm)
Base Product Number SA04-11
Standard Package 27
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1242685-SA04-11SURKWA
Ultra Librarian 3D Model Ultra Librarian SA04-11SURKWA CAD Model

Description

The SA04-11SURKWA is an LED character and numeric display module manufactured by Kingbright.

  • Category: Optoelectronics
  • Color: Red
  • Package: Tube
  • Products in Tube: 27
  • Millicandela Rating: 80mcd
  • Voltage Forward (Vf): 1.95V
  • Test Current: 20mA
  • Wavelength Peak: 645nm
  • Power Dissipation: 75mW
  • Display Type: 7-segment
  • Character Count: 1
  • Digit/Alpha Size: 0.40" (10.16mm)
  • Common Pin: Common anode
  • Package/Case: 14-DIP (0.295", 7.50mm)
  • Dimensions: 0.738" H x 0.386" W x 0.200" D (18.75mm x 9.80mm x 5.08mm)
