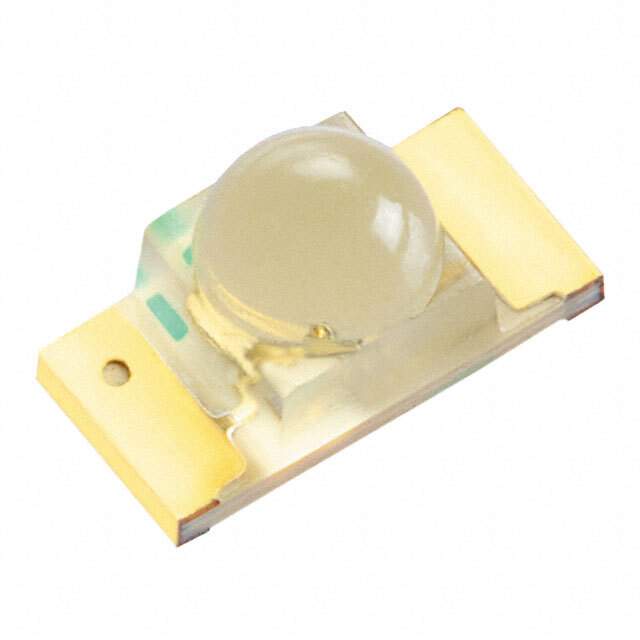

APTD3216SYCK Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Kingbright
Package Tape & Reel
Color Yellow
Configuration Standard
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 800mcd
Lens Style Round with Domed Top
Lens Size 1.60mm Dia
Voltage - Forward (Vf) (Typ) 2V
Current - Test 20mA
Viewing Angle 35°
Mounting SMD (SMT)
Wavelength - Dominant 590nm
Wavelength - Peak 590nm
Package / Case 1206 (3216 Metric)
Supplier Device Package 2-SMD
Dimension 3.20mm L x 1.60mm W
Height (Max) 1.90mm
Base Product Number APTD3216
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names Q8226483D,754-1160-1,754-1160-2,754-1160-6
Standard Package 2,000
Win Source Part Number 1150433-APTD3216SYCK
Ultra Librarian 3D Model Ultra Librarian APTD3216SYCK CAD Model

Description

The APTD3216SYCK is a yellow LED indication discrete component from Kingbright.

  • Lens: Clear
  • Viewing Angle: 35 degrees
  • Millicandela Rating: 800mcd
  • Voltage-Forward: 2V
  • Current-Test: 20mA
  • Wavelength-Dominant: 590nm
  • Wavelength-Peak: 590nm
  • Mounting: SMD (SMT) technology
  • Package/Case: 1206 (3216 Metric)
  • Package Type: Tape & Reel
  • Supplier Device Package: 2-SMD
  • Application: Optoelectronics applications
