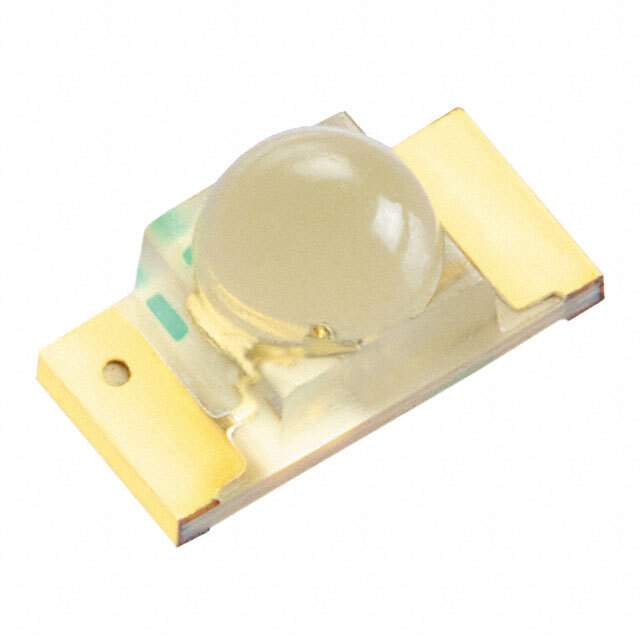

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Kingbright
Packaging Reel
Color Red
Configuration Standard
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 800mcd
Lens Style Round with Domed Top
Lens Size 1.60mm Dia
Voltage - Forward (Vf) 1.95V
Current - Test 20mA
Viewing Angle 35°
Mounting Style SMD
Wavelength - Dominant 630nm
Wavelength - Peak 645nm
Manufacturer Package 1206
Supplier Device Package 2-SMD
Parts Dimension 3.20mm L x 1.60mm W
Height (Maximum) 1.90mm
Manufacturer Pack Quantity 1
MSL Level 3 (168 Hours)
Win Source Part Number 722224-APTD3216SURCK
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian APTD3216SURCK CAD Model

Description

The Kingbright APTD3216SURCK is a surface mount device (SMD) LED with a viewing angle of 35 degrees.

  • Configuration: Standard
  • Lens Transparency: Clear
  • Lens Color: Colorless
  • Millicandela Rating: 800mcd
  • Test Current: 20mA
  • Dominant Wavelength: 630nm
  • Peak Wavelength: 645nm
  • Category: Optoelectronics
  • Supplier Device Package: 2-SMD
  • Lens Style: Round with a domed top
  • Lens Size: 1.60mm diameter
  • Manufacturer Package: 1206
  • Height: 1.90mm (Max)
  • Supply and Demand: Balance
  • Manufacturer Pack Quantity: 1
  • MSL Level: 3 (168 Hours)
  • Parts Dimension: 3.20mm L x 1.60mm W
  • Forward Voltage (Vf): 1.95V
