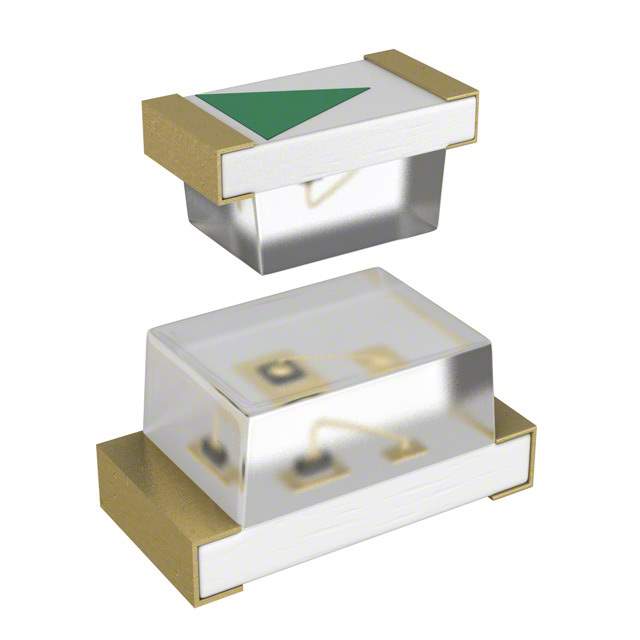

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Optoelectronics>LED Emitters - Infrared, UV, Visible
Mfr Kingbright
Package Tape & Reel
Type Infrared (IR)
Current - DC Forward (If) (Max) 50mA
Radiant Intensity (Ie) Min @ If 1.2mW/sr @ 20mA
Wavelength 940nm
Voltage - Forward (Vf) (Typ) 1.2V
Viewing Angle 150°
Orientation Top View
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting SMD (SMT)
Package / Case 0603 (1608 Metric)
Base Product Number APT1608
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names 754-1433-1,754-1433-2,754-1433-6
Standard Package 2,000
Win Source Part Number 995255-APT1608F3C
Ultra Librarian 3D Model Ultra Librarian APT1608F3C CAD Model

Description

The Kingbright APT1608F3C LED emitter component is a high-quality electronic component with an infrared type.

  • Viewing Angle: 150 degrees
  • Voltage-Forward: 1.2V with a current-test of 50mA
  • Wavelength: 940nm
  • Radiant Intensity: 1.2mW/sr @ 20mA
  • Package/Case: 0603 (1608 Metric)
  • Supplier Device Package: Tape & Reel
  • Orientation: Top view
  • Temperature Range: -40°C ~ 85°C (TA)
  • Suitable For: Optoelectronics applications
