The Texas Instruments HD3SS3212RKST is a high-performance, bidirectional passive switch in a small footprint, designed to handle the demands of high-speed data transmission and reception. This device is a part of TI's extensive interface portfolio and is specifically engineered to address the needs of USB Type-C and USB Power Delivery applications.

Key Features

• USB Type-C and Power Delivery: The HD3SS3212RKST is optimized for USB Type-C and USB PD, making it an ideal choice for applications that require switching between USB 3.1 Gen 1 (5 Gbps) or USB 2.0 signals.
• High-Speed Performance: With support for high-speed data rates, this switch ensures minimal signal degradation, providing a reliable and efficient data transfer solution.
• Dual-Channel Operation: The device features two differential channels that can be independently switched, offering flexibility in managing multiple signal paths.
• Low Power Consumption: Designed for power-sensitive applications, the HD3SS3212RKST operates with low power dissipation, contributing to overall system power efficiency.

Applications

The HD3SS3212RKST is suitable for a wide range of applications, including but not limited to:

• USB Type-C docks, hubs, and monitors
• USB Type-C power adapters and chargers
• USB Type-C to legacy data adapters
• Portable devices with USB Type-C connectivity

Product Specifications

Below are the essential specifications for the HD3SS3212RKST:

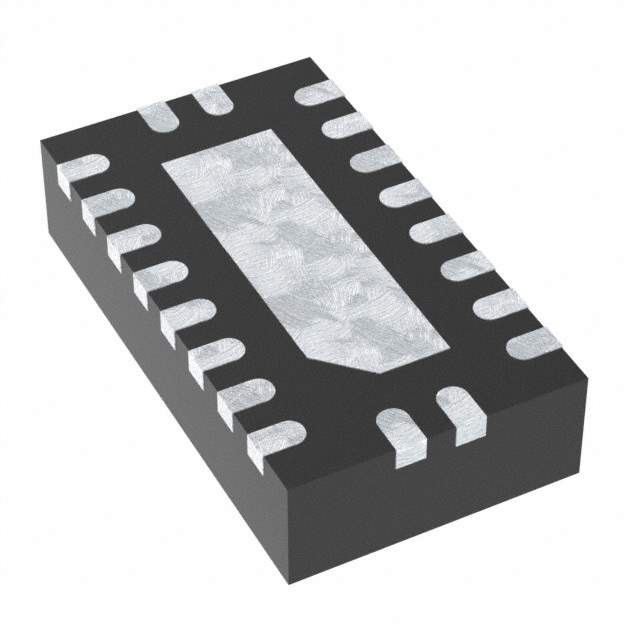

• Package: The device comes in a compact WQFN-16 package.
• Temperature Range: It operates over an industrial temperature range of -40°C to 85°C.
• Compliance: The switch is compliant with USB 3.1 Gen 1 and USB 2.0 standards.

Quality and Reliability

Texas Instruments is renowned for its commitment to quality and reliability, and the HD3SS3212RKST is no exception. It is manufactured using industry-leading processes and subjected to rigorous testing to ensure it meets TI's high standards for performance and durability.

For more information, datasheets, and support resources, customers can visit the Texas Instruments website or contact their local TI sales representative.
