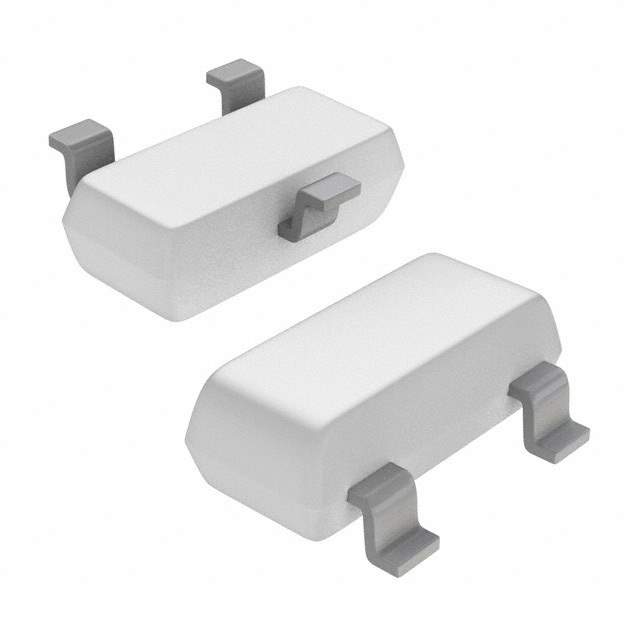

AM23SGD3-F Real Image
Same model may have multiple batches, images only for reference.

AM23SGD3-F

Part No AM23SGD3-F
Manufacturer Kingbright
Catalog LED Indication - Discrete
Description LED GREEN DIFFUSED SOT23 SMD / Green 568nm LED Indication - Discrete 2.2V TO-236-3, SC-59, SOT-23-3
Datasheet
AM23SGD3-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Mfr Kingbright
Package Tape & Reel
Color Green
Configuration Standard
Lens Color Green
Lens Transparency Diffused
Millicandela Rating 8mcd
Lens Style Rectangle with Flat Top
Lens Size 3.00mm x 1.30mm
Voltage - Forward (Vf) (Typ) 2.2V
Current - Test 20mA
Viewing Angle 140°
Mounting SMD (SMT)
Wavelength - Dominant 568nm
Wavelength - Peak 565nm
Package / Case TO-236-3, SC-59, SOT-23-3
Supplier Device Package SOT-23
Dimension 3.00mm L x 1.30mm W
Height (Max) 1.20mm
Base Product Number AM23
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Names 754-1838-1,AM23SGD3-F-ND,754-1838-2,754-1838-6
Standard Package 2,000
Win Source Part Number 1161067-AM23SGD3-F
Ultra Librarian 3D Model Ultra Librarian AM23SGD3-F CAD Model

Description

The AM23SGD3-F LED indication is a high-quality electronic component designed for reliable performance from Kingbright.

  • Color: Green
  • Viewing Angle: 140°
  • Voltage-Forward (Vf): 2.2V
  • Maximum Current: 20mA
  • Wavelength-Dominant: 568nm
  • Millicandela Rating: 8mcd
  • Lens Transparency: Diffused
  • Package: SOT-23
  • Mounting: Surface Mount, SMD (SMT)
  • Usage: General Purpose
