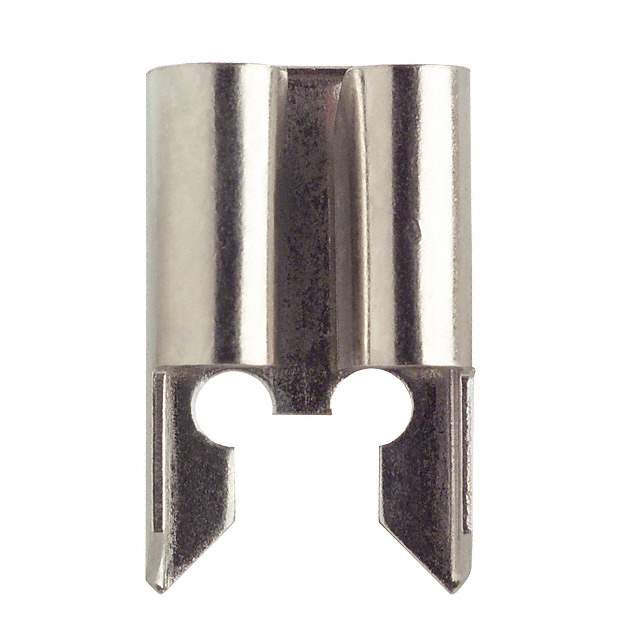

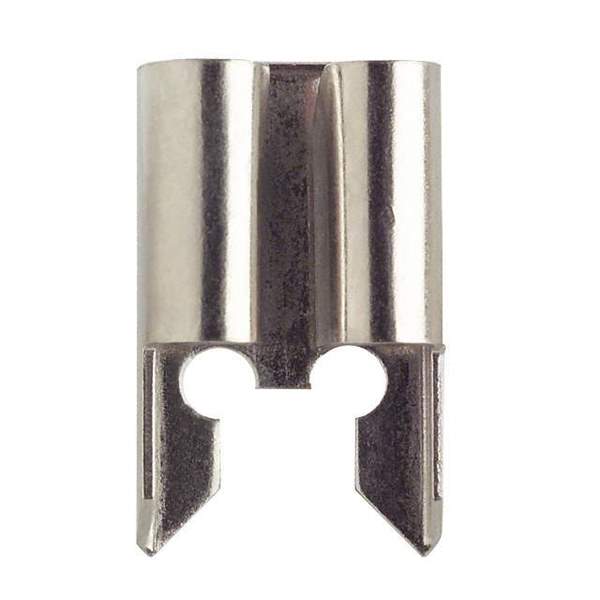

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - Quick Connects, Quick Disconnect Connectors
Mfr Keystone Electronics
Package Bulk
Product Status Active
Terminal Type Standard
Gender Female
Tab Width 0.110" (2.79mm)
Tab Thickness 0.020" (0.51mm)
Tab Length 0.196" (4.98mm)
Length - Overall 0.440" (11.18mm)
Termination Solder
Insulation Non-Insulated
Mounting Type Through Hole
Features UL Approved
Contact Material Brass
Contact Finish Tin
Standard Package 10 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1331977-3534
Ultra Librarian 3D Model Ultra Librarian 3534 CAD Model

Description

The Quick Disconnect Connector is a versatile terminal connector that provides a fast and reliable way to make electrical connections.

  • Terminal Type: Standard
  • Material: Brass
  • Gender: Female
  • Length: 0.440" (11.18mm)
  • Tab Width: 0.110" (2.79mm)
