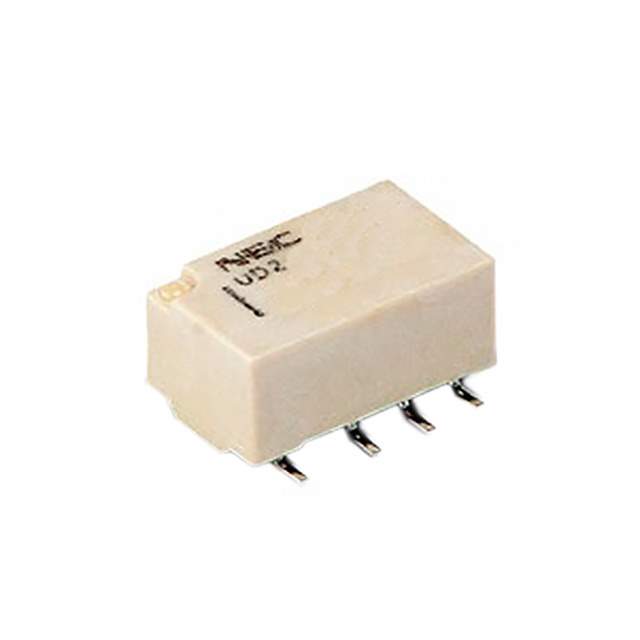

UD2-5SNUN Real Image
Same model may have multiple batches, images only for reference.

UD2-5SNUN

Part No UD2-5SNUN
Manufacturer Kemet
Catalog Signal Relays, Up to 2 Amps
Description RELAY GEN PURPOSE DPDT 1A 5VDC / General Purpose Relay DPDT (2 Form C) Surface Mount
Datasheet
UD2-5SNUN Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Signal Relays, Up to 2 Amps
Mfr KEMET
Series UD2
Package Tube
Mounting Type Surface Mount
Coil Voltage 5VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 1 A
Switching Voltage 250VAC, 220VDC - Max
Coil Current 20 mA
Coil Type Latching, Single Coil
Termination Style Gull Wing
Must Operate Voltage 3.75 VDC
Operate Time 2 ms
Release Time 1 ms
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Alloy, Gold Alloy
Relay Type General Purpose
Coil Resistance 250 Ohms
Standard Package 50
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 1340818-UD2-5SNUN
Ultra Librarian 3D Model Ultra Librarian UD2-5SNUN CAD Model

Description

The KEMET UD2-5SNUN is a signal relay with a DPDT (2 Form C) contact form.

  • Contact Form: DPDT (2 Form C)
  • Contact Rating: 1A
  • Switching Voltage: 250VAC, 220VDC - Max
  • Coil Voltage: 5VDC
  • Coil Resistance: 250 Ohms
  • Series: UD2
  • Application: General Purpose
  • Package: Tube
  • Termination Style: Gull Wing
  • Mounting Type: Surface Mount
  • Temperature Range: -40°C to 85°C
