Same model may have multiple batches, images only for reference.

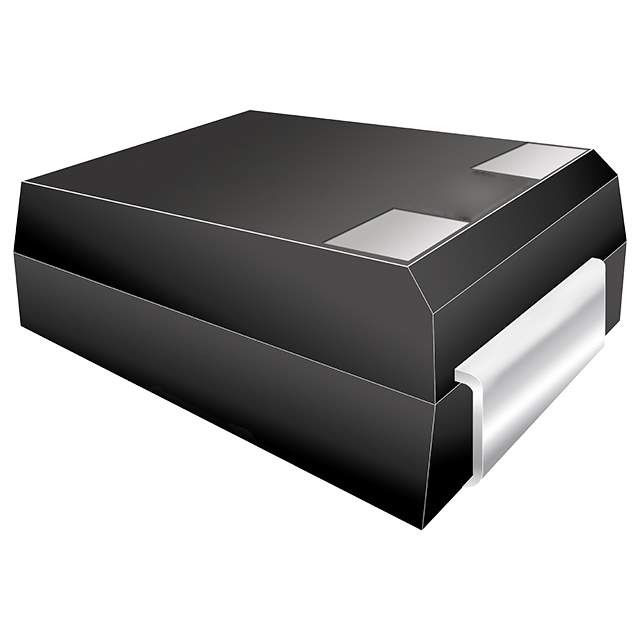

T530D567M2R5ATE005 Real Image
Same model may have multiple batches, images only for reference.

T530D567M2R5ATE005

Part No T530D567M2R5ATE005
Manufacturer Kemet
Catalog Tantalum - Polymer Capacitors
Description CAP TANT POLY 560UF 2.5V 2917 / Cap Tant Polymer 560uF 2.5VDC D CASE 20% (7.3 X 4.3 X 2.8mm) SMD 7343-31 0.005 Ohm 125°C T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Kemet
Series KO-CAP T530
Packaging Reel package
Capacitance 560μF
Tolerance ±20%
Voltage Rating DC 2.5V
Type Molded
ESR (Equivalent Series Resistance) 5 mOhm
Operating Temperature Range -55°C ~ 125°C
Lifetime @ Temp. 2000 Hrs @ 105°C
Mounting SMD
Package 2917 (7343 Metric)
Dimension 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Maximum) 0.122" (3.10mm)
Manufacturer Size Code D
Features General
Win Source Part Number 796177-T530D567M2R5ATE005
Popularity Medium
Supply and Demand Status Limited
Family Name T530
Introduction Date September 27, 2011
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2030
Ultra Librarian 3D Model Ultra Librarian T530D567M2R5ATE005 CAD Model

Description

The Kemet KO-CAP T530 series capacitor is a molded type capacitor from Kemet.

  • Capacitance: 560μF
  • Tolerance: ±20%
  • Equivalent Series Resistance (ESR): 5 mOhm
  • Operating Temperature Range: -55°C ~ 125°C
  • Lifetime: 2000 hours @ 105°C
  • Package: 2917 (7343 Metric)
  • Mounting: SMD
  • Voltage Rating DC: 2.5V
  • Height: 0.122" (3.10mm)
  • Halogen-Free: Yes
  • ECCN: EAR99
  • Estimated EOL Date: 2030
