Same model may have multiple batches, images only for reference.

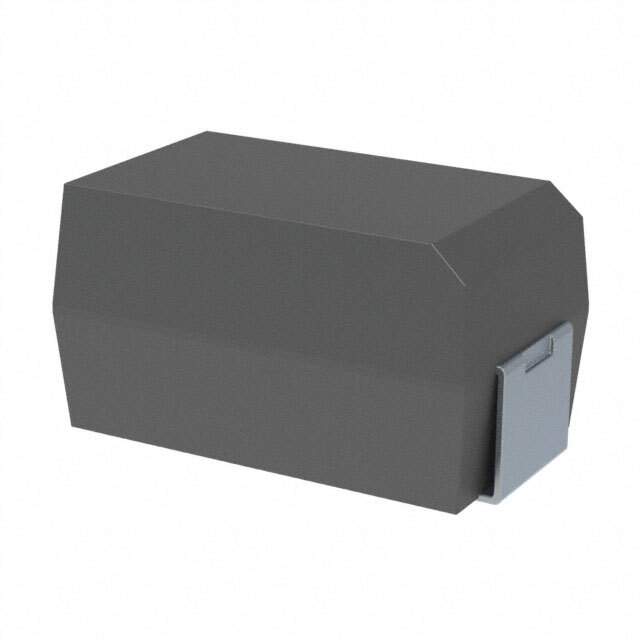

T520X687M004ATE015 Real Image
Same model may have multiple batches, images only for reference.

T520X687M004ATE015

Part No T520X687M004ATE015
Manufacturer Kemet
Catalog Tantalum - Polymer Capacitors
Description CAP TANT POLY 680UF 4V 2917 / Cap Tant Polymer 680uF 4VDC X CASE 20% (7.3 X 4.3 X 4mm) SMD 7343-43 0.015 Ohm 105°C T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Kemet
Series KO-CAP T520
Packaging Reel package
Capacitance 680μF
Tolerance ±20%
Voltage Rating DC 4V
Type Molded
ESR (Equivalent Series Resistance) 15 mOhm
Operating Temperature Range -55°C ~ 105°C
Lifetime @ Temp. 2000 Hrs @ 105°C
Mounting SMD
Package 2917 (7343 Metric)
Dimension 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Maximum) 0.169" (4.30mm)
Manufacturer Size Code X
Features General
Win Source Part Number 796157-T520X687M004ATE015
Popularity Medium
Supply and Demand Status Limited
Family Name T520
Introduction Date September 27, 2011
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2030
Ultra Librarian 3D Model Ultra Librarian T520X687M004ATE015 CAD Model

Description

The Kemet T520X687M004ATE015 is a KO-CAP T520 series molded capacitor with a capacitance of 680μF and a tolerance of ±20%. Kemet

  • ESR: 15 mOhm
  • Voltage Rating DC: 4V
  • Lifetime: 2000 hours @ 105°C
  • Package: 2917 (7343 Metric)
  • Dimension: 0.287" L x 0.169" W (7.30mm x 4.30mm)
  • Maximum Seated Height: 0.169" (4.30mm)
  • ECCN: EAR99
  • Halogen-free: Yes
