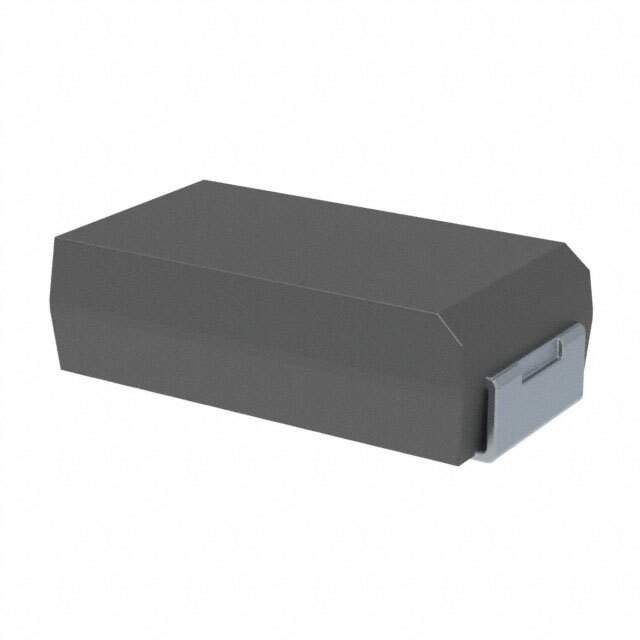

T520L157M006ATE025 Real Image
Same model may have multiple batches, images only for reference.

T520L157M006ATE025

Part No T520L157M006ATE025
Manufacturer Kemet
Catalog Tantalum - Polymer Capacitors
Description CAP TANT POLY 150UF 6.3V 2312 / Cap Tant Polymer 150uF 6.3VDC L CASE 20% (6 X 3.2 X 1.8mm) SMD 6032-19 0.025 Ohm 105°C T/R
Datasheet
T520L157M006ATE025 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Kemet
Series KO-CAP T520
Packaging Reel package
Capacitance 150μF
Tolerance ±20%
Voltage Rating DC 6.3V
Type Molded
ESR (Equivalent Series Resistance) 25 mOhm
Operating Temperature Range -55°C ~ 105°C
Lifetime @ Temp. 2000 Hrs @ 105°C
Mounting SMD
Package 2312
Dimension 0.236" L x 0.126" W (6.00mm x 3.20mm)
Height - Seated (Maximum) 0.075" (1.90mm)
Manufacturer Size Code L
Features General
Win Source Part Number 796144-T520L157M006ATE025
Popularity Medium
Supply and Demand Status Limited
Family Name T520
Introduction Date September 26, 2011
ECCN EAR99
Country of Origin United States of America
Estimated EOL Date 2030
Ultra Librarian 3D Model Ultra Librarian T520L157M006ATE025 CAD Model

Description

The Kemet KO-CAP T520 series capacitor is a general-purpose molded type with a capacitance of 150μF and a tolerance of ±20%.

  • Voltage Rating DC: 6.3V
  • ESR (Equivalent Series Resistance): 25mOhm
  • Lifetime: 2000 Hrs @ 105°C
  • Dimension: 0.236" L x 0.126" W (6.00mm x 3.20mm)
  • Height Seated (Maximum): 0.075" (1.90mm)
  • Package: Reel
  • Mounting: SMD
  • Family: T520
