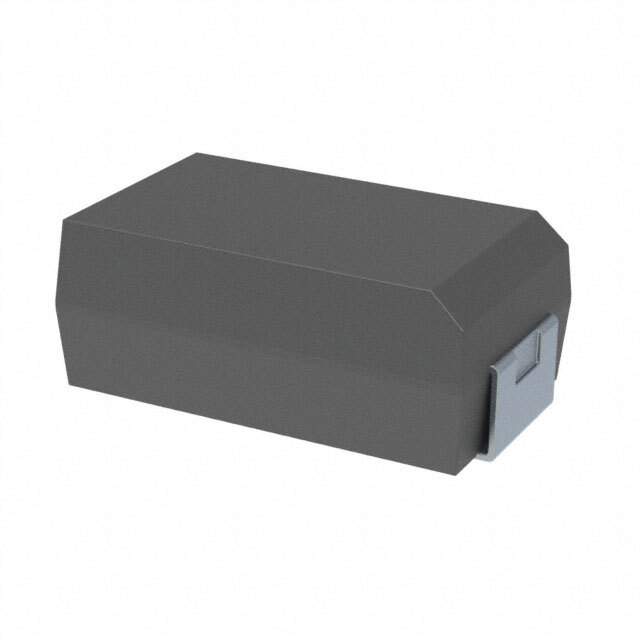

Same model may have multiple batches, images only for reference.

T520D686M016ATE050

Name: T520D686M016ATE050
Brand: Kemet
SKU: 936023
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	T520D686M016ATE050
Manufacturer	Kemet
Catalog	Tantalum - Polymer Capacitors
Description	CAP TANT POLY 68UF 16V 2917
Datasheet	T520D686M016ATE050 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Capacitors
Estimated Pruduction Lead Time	41 Weeks
Features	68 µF Molded Tantalum Polymer Capacitor 16 V 2917 (7343 Metric) 50mOhm @ 100kHz
Manufacturer	Kemet
Series	KO-CAP® T520
Package	Reel - TR
Operating Temperature Range	-55°C ~ 105°C
Mounting	Surface Mount
Package	2917 (7343 Metric)
Family Name	T520D
MSL Level	3 (168 Hours)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.21.0050
Other Part Number	399-5151-2, 399-5151-1, 399-5151-6, 2266-T520D686M016ATE050TR
Quantity per package	500
Popularity	High
Supply and Demand Status	Balance
Win Source Part Number	936023-T520D686M016ATE050
Ultra Librarian 3D Model	Ultra Librarian T520D686M016ATE050 CAD Model

Description

The Kemet KO-CAP® T520 series is a molded tantalum polymer capacitor that has a capacitance of 68 µF and a voltage rating of 16 V.

Package Size: 2917 (7343 Metric)
ESR: 50mOhm @ 100kHz
Operating Temperature Range: -55°C to 105°C
Family Name: T520D
Mounting: Surface Mount Technology
Package: Reel - TR
Quantity: 500 pieces
REACH: Unaffected
ECCN: EAR99
Estimated Production Lead Time: 41 weeks
MSL Level: 3 (168 Hours)
