Same model may have multiple batches, images only for reference.

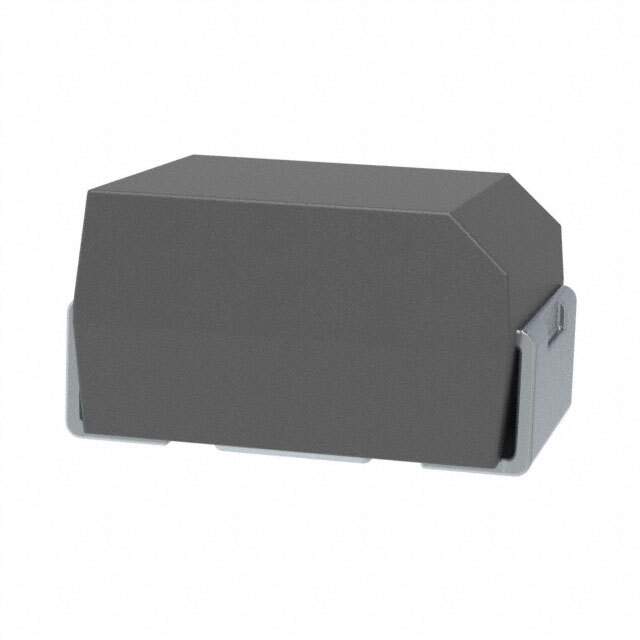

T520B337M2R5ATE070 Real Image
Same model may have multiple batches, images only for reference.

T520B337M2R5ATE070

Part No T520B337M2R5ATE070
Manufacturer Kemet
Catalog Tantalum - Polymer Capacitors
Description CAP TANT POLY 330UF 2.5V 3528 / Tantalum, Polymer Tantalum, T520, 330 uF, 20%, 2.5 V, 3528, SMD, Polymer, Molded, Low ESR, Non-Combustible, 70 mOhms, Height Max = 2.1mm
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Kemet
Packaging Reel
Part Status Obsolete (End Of Life)
Capacitance 330μF
Tolerance ±20%
Voltage - Rated 2.5V
Type Molded
ESR (Equivalent Series Resistance) 70mOhm at 100kHz
Temperature Range - Operating -55°C ~ 105°C
Lifetime at Temp. 2000 Hrs at 105°C
Mounting Style SMD
Manufacturer Package 1411 (3528 Metric)
Dimension 0.138" L x 0.110" W (3.50mm x 2.80mm)
Height - Seated (Maximum) 0.083" (2.10mm)
Manufacturer Size Code B
Features General Purpose
Manufacturer Pack Quantity 2,000
MSL Level 3 (168 Hours)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 806971-T520B337M2R5ATE070
Ultra Librarian 3D Model Ultra Librarian T520B337M2R5ATE070 CAD Model

Description

The Kemet T520B series capacitor is a molded type capacitor from Kemet.

  • Capacitance: 330μF
  • Voltage Rating: 2.5V
  • Tolerance: ±20%
  • ESR: 70mOhm @ 100kHz
  • Temperature Range: -55°C to 105°C
  • Lifetime: 2000 hours @ 105°C
  • Package: 1411 (3528 Metric) SMD
  • Packaging: reel
  • Applications: general-purpose
  • Technology: obsolete (End of Life)
  • Supply and Demand: limited
