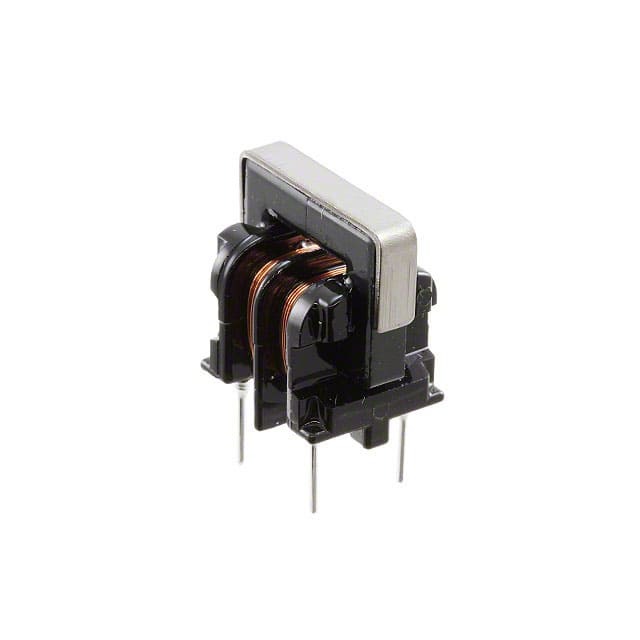

SU9V-07010 Kemet
Same model may have multiple batches, images only for reference.

SU9V-07010

Part No SU9V-07010
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SU
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 1 mH @ 1 kHz
Current Rating (Max) 700mA
DC Resistance (DCR) (Max) 600mOhm
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Dimension 0.669" L x 0.433" W (17.00mm x 11.00mm)
Height (Max) 0.669" (17.00mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SU9V
Other Names 399-10722,UALSU9V0701000
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.4065
Win Source Part Number 1276502-SU9V-07010
Ultra Librarian 3D Model Ultra Librarian SU9V-07010 CAD Model

Description

This common mode choke filter has a Win Source Part Number 1276502-SU9V-07010 and is part of the SU series.

  • Voltage Rating - AC: 250V
  • Current Rating (Max): 700mA
  • Standard Package: 1,000
  • Height (Max): 0.669" (17.00mm)
  • Number of Lines: 2
  • Inductance @ Frequency: 1 mH @ 1 kHz
  • DC Resistance (DCR) (Max): 600mOhm
  • Mounting Type: Through Hole
  • Package/Case: Vertical, 4 PC pin
  • Temperature Range - Operating: -25°C ~ 120°C
  • MSL Level: 1 (Unlimited)
  • REACH Status: REACH Unaffected
  • HTSUS: 8504.31.4065
