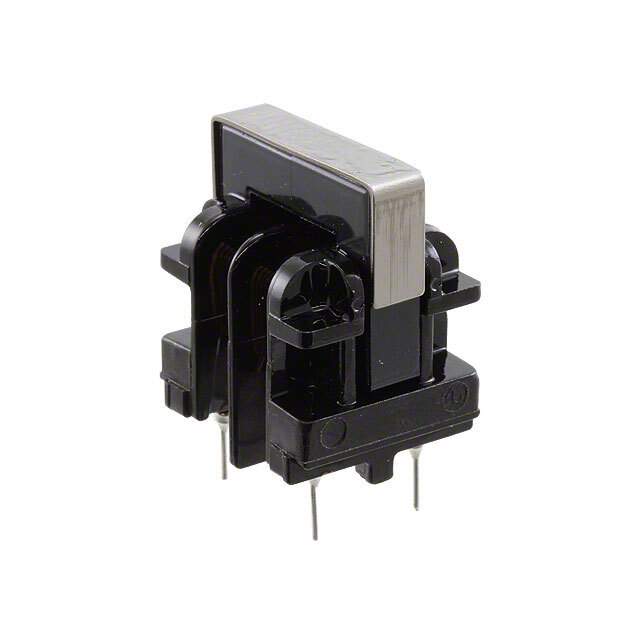

SU16VD-40010 Real Image
Same model may have multiple batches, images only for reference.

SU16VD-40010

Part No SU16VD-40010
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SU
Package Bulk
Filter Type Power Line
Number of Lines 2
Inductance @ Frequency 10 µH @ 1 kHz
Current Rating (Max) 4A
DC Resistance (DCR) (Max) 40mOhm
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Dimension 0.906" L x 0.748" W (23.00mm x 19.00mm)
Height (Max) 1.083" (27.50mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SU16VD
Other Names 399-10740,UALSU16VD40010
Standard Package 600
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.4065
Win Source Part Number 1276495-SU16VD-40010
Ultra Librarian 3D Model Ultra Librarian SU16VD-40010 CAD Model

Description

The SU series common mode choke from KEMET is a power line filter type component with a voltage rating of 250V AC and a current rating of 4A.

  • Voltage Rating: 250V AC
  • Current Rating: 4A
  • Inductance: 10 µH @ 1 kHz
  • DC Resistance: 40mOhm
  • Temperature Range: -25°C to 120°C
  • Package: Bulk
  • Mounting: Through-hole
  • Case: Vertical, 4 PC pin
  • Height: 1.083" (27.50mm)
  • Lines: 2
  • Standard Package: 600
  • Dimensions: 0.906" L x 0.748" W (23.00mm x 19.00mm)
  • ECCN: EAR99 compliant
  • MSL Level: Unlimited
