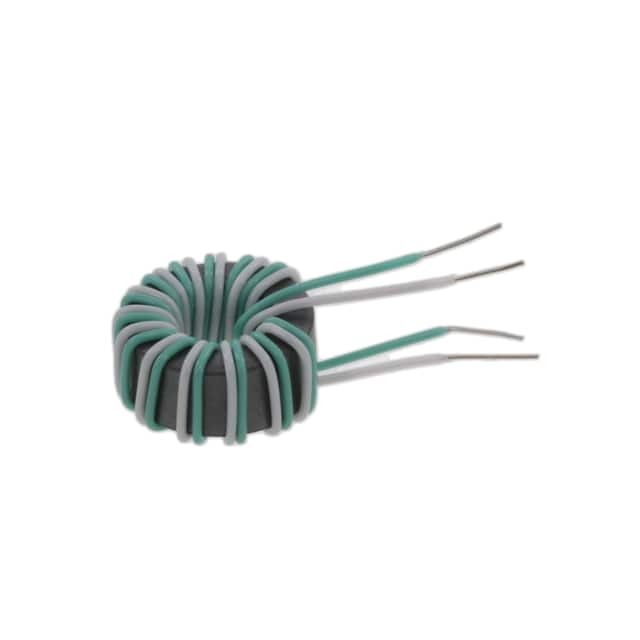

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Filters - Common Mode Chokes
Mfr KEMET
Series ST
Package Tray
Product Status Active
Number of Lines 2
Impedance @ Frequency 1.5 kOhms @ 7 MHz
Current Rating (Max) 200mA
DC Resistance (DCR) (Max) 100mOhm
Voltage Rating - DC 50V
Temperature Range - Operating -20°C ~ 75°C
Mounting Type Through Hole
Size / Dimension 0.709" Dia (18.00mm)
Height (Max) 0.433" (11.00mm)
Package / Case Vertical, No Base, 4 PC Pin
Standard Package 600 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1277112-ST-201
Ultra Librarian 3D Model Ultra Librarian ST-201 CAD Model

Description

The ST-201 is a common mode choke from KEMET's ST series.

  • Application: Filtering
  • Diameter: 0.709" (18.00mm)
  • Height: 0.433" (11.00mm)
  • Current Rating: 200mA
  • DC Resistance (DCR): 100mOhm
  • Impedance: 1.5 kOhms @ 7 MHz
  • Mounting: Through-Hole
  • Package: Vertical, no base, 4 PC pin
  • Temperature Range: -20°C to 75°C
  • Status: Active
