Same model may have multiple batches, images only for reference.

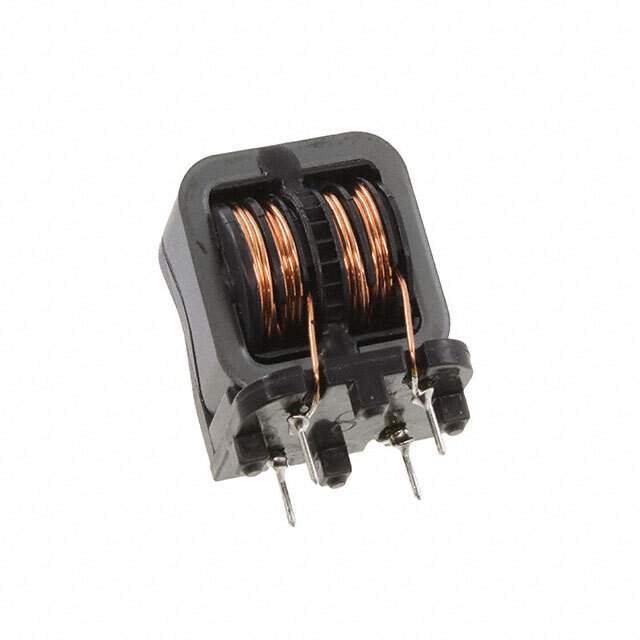

SSRH24NV-50041 Real Image
Same model may have multiple batches, images only for reference.

SSRH24NV-50041

Part No SSRH24NV-50041
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SSRH
Package Bulk
Number of Lines 2
Inductance @ Frequency 4.1 mH @ 10 kHz
Current Rating (Max) 5A
DC Resistance (DCR) (Max) 35mOhm
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Height (Max) 1.220" (31.00mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SSRH24N
Other Names 399-19073,UALS24V5004100
Standard Package 240
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276534-SSRH24NV-50041
Ultra Librarian 3D Model Ultra Librarian SSRH24NV-50041 CAD Model

Description

The KEMET SSRH24NV-50041 is a common mode choke from KEMET's SSRH series that is designed to be used in filters.

  • Product Name: SSRH24NV-50041
  • Series: SSRH
  • Mounting Type: Through-hole
  • Package/Case: Vertical, 4 PC pin
  • Voltage Rating: 250V AC
  • Maximum Current: 5A
  • Height: 1.220 inches (31.00mm)
  • Lines: Two
  • Inductance: 4.1 mH @ 10 kHz
  • Maximum DC Resistance (DCR): 35mOhm
  • Operating Temperature Range: -25°C to 120°C
  • ECCN: EAR99 compliant
  • REACH: Not affected
